XC40 - "C" Motor Adapter Kits

Once you have select your XC40 speed reducer and added to the shopping cart, you need to select the appropriate B5 or B14 flange to match your desired motor input.   The "C" type motor adapter kit will come with the flange and mounting bolts to fit your XC 40.

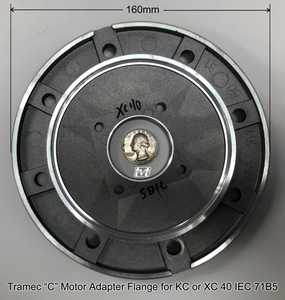

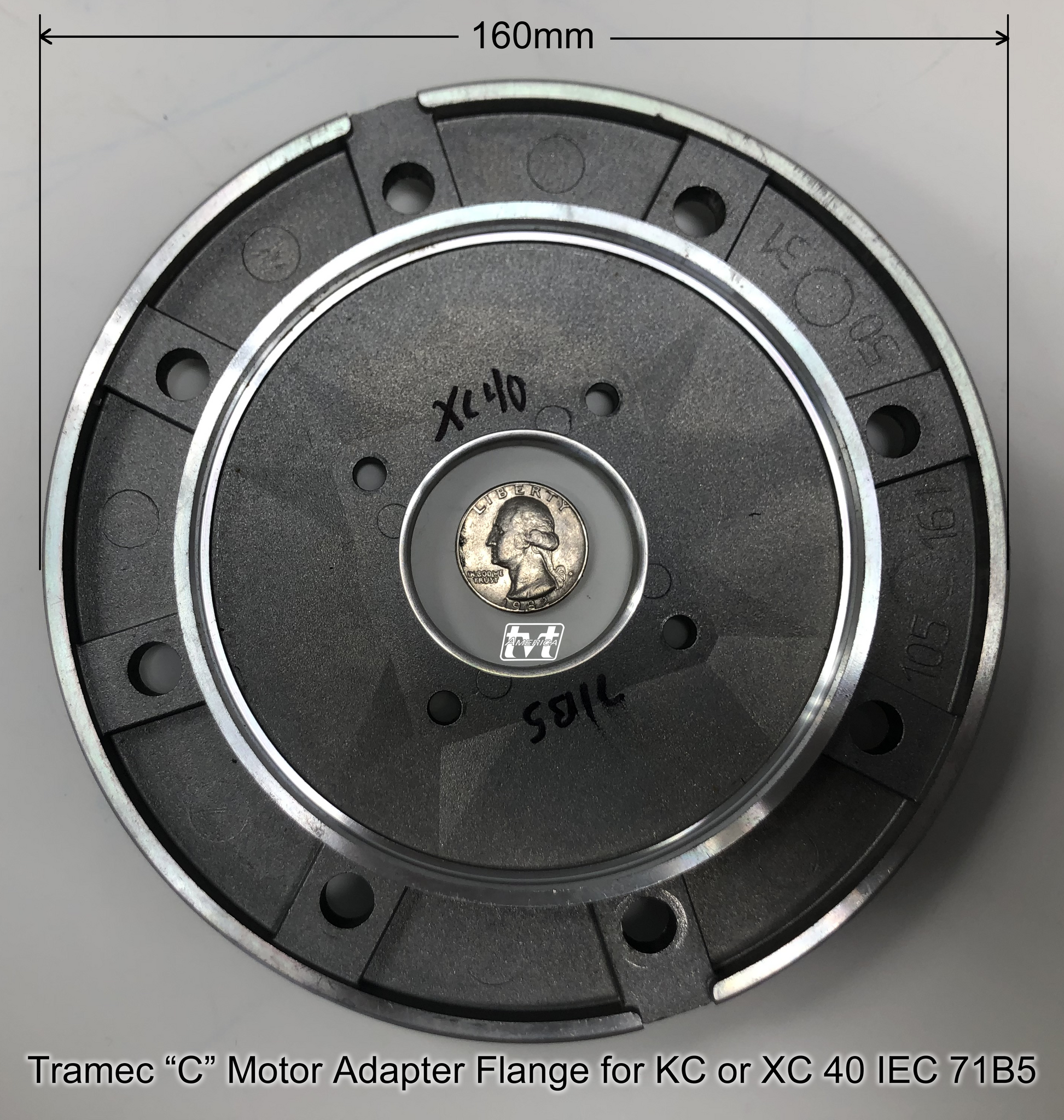

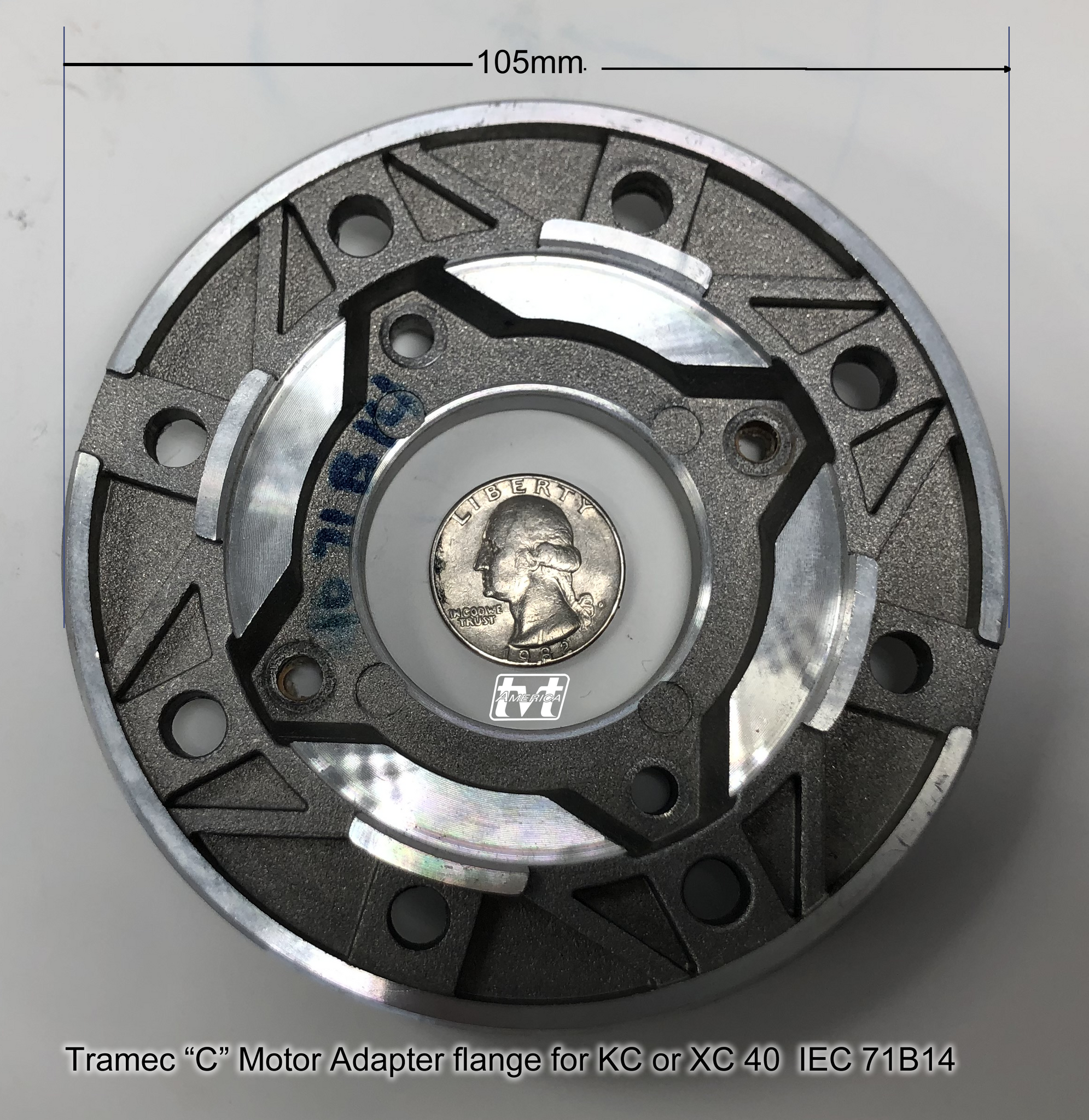

• Motor IEC 71 has 14mm shaft and standard motor flanges are 160mm (71b5) and 105mm (71B14).

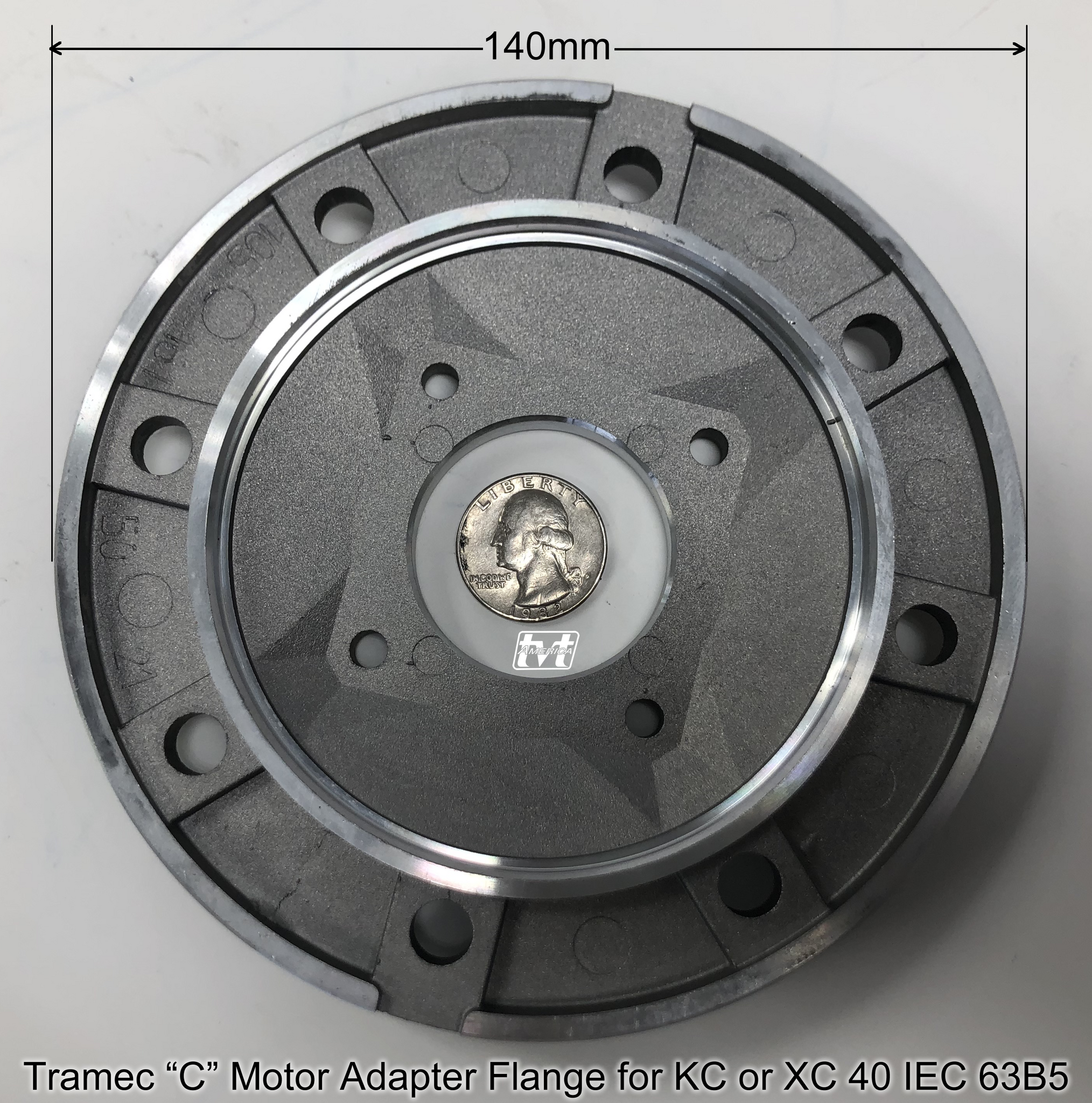

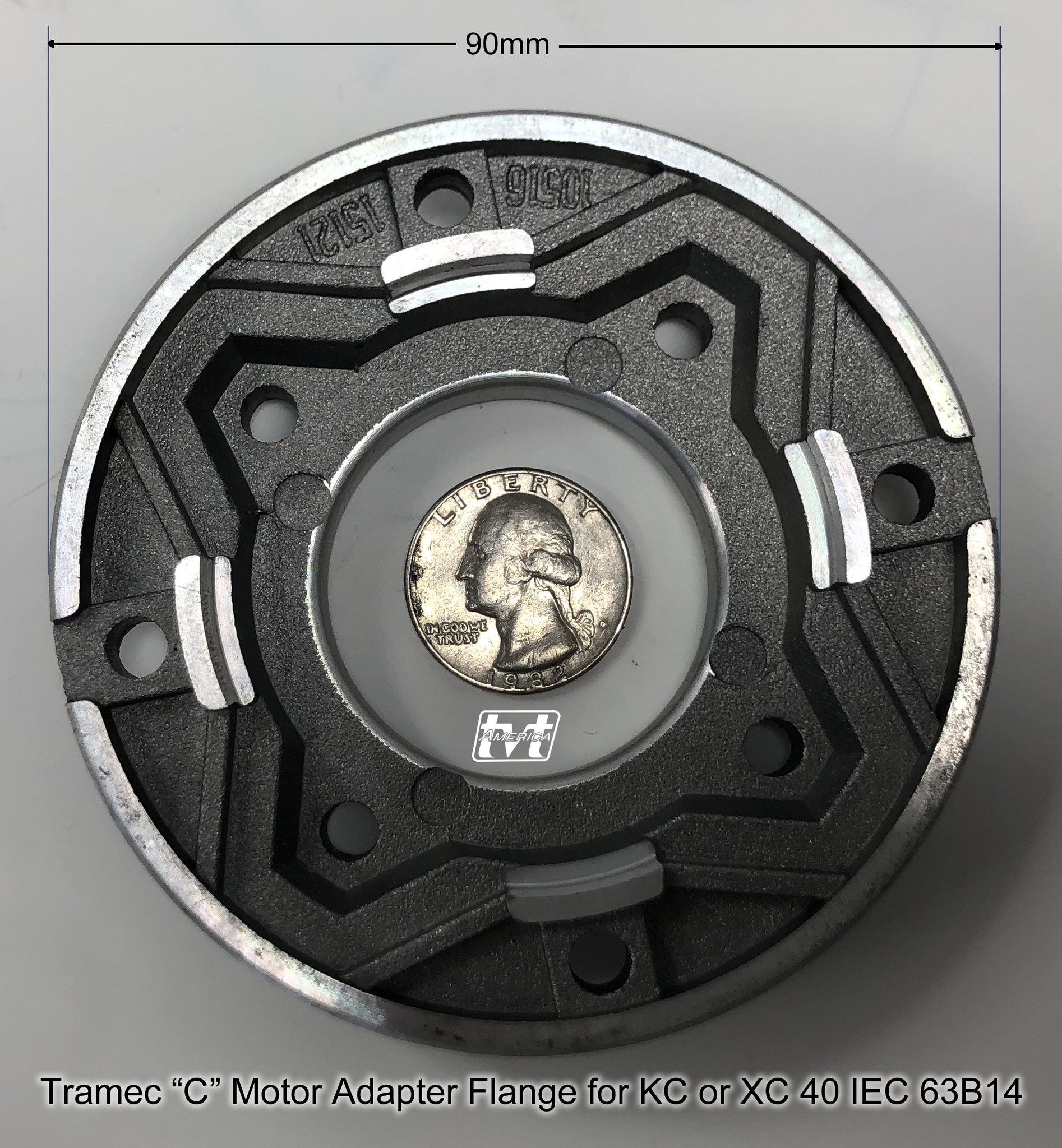

• Motor IEC 63 has 11mm shaft and standard motor flanges are 140mm (63b5) and 90mm (63b14).

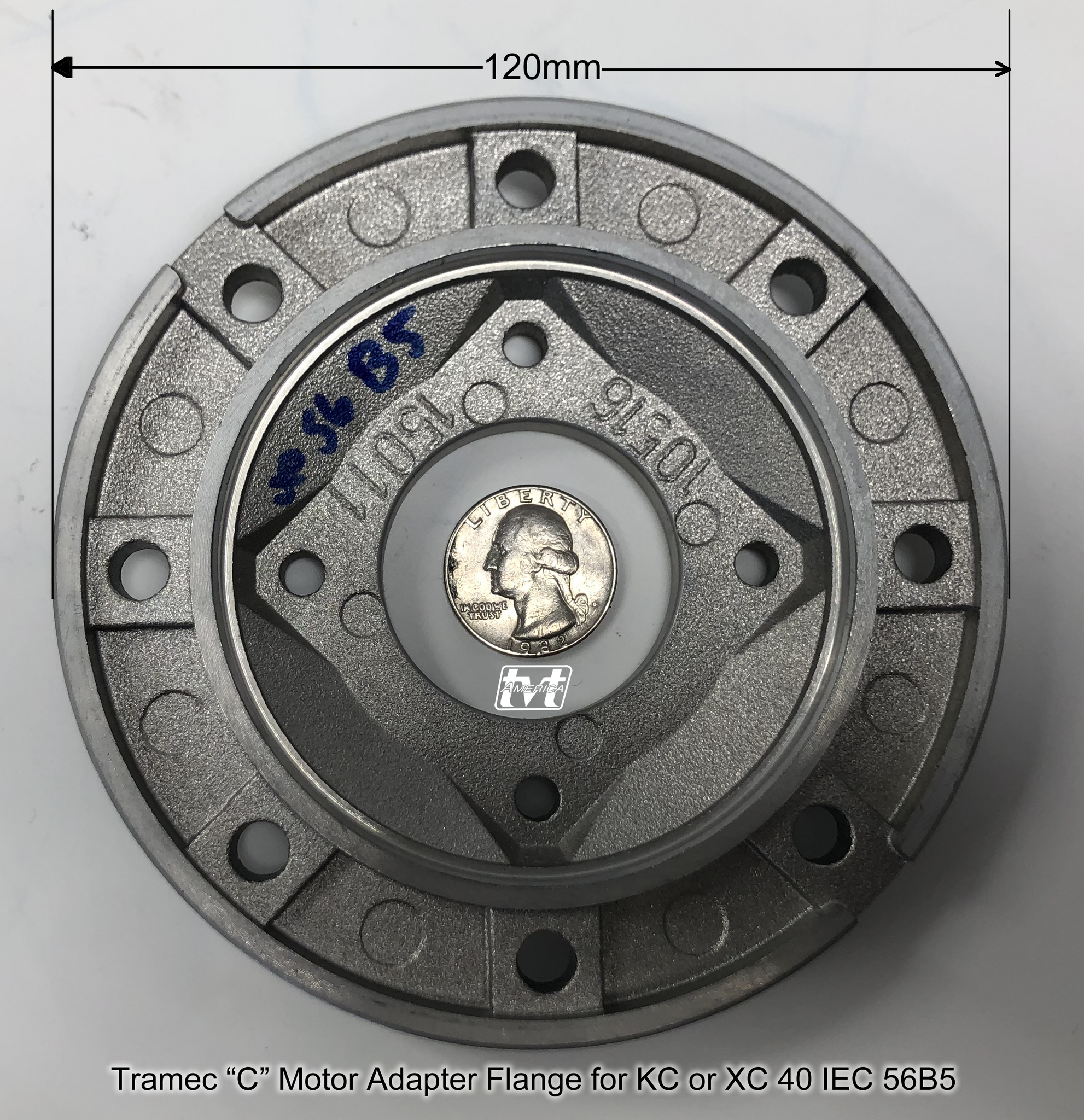

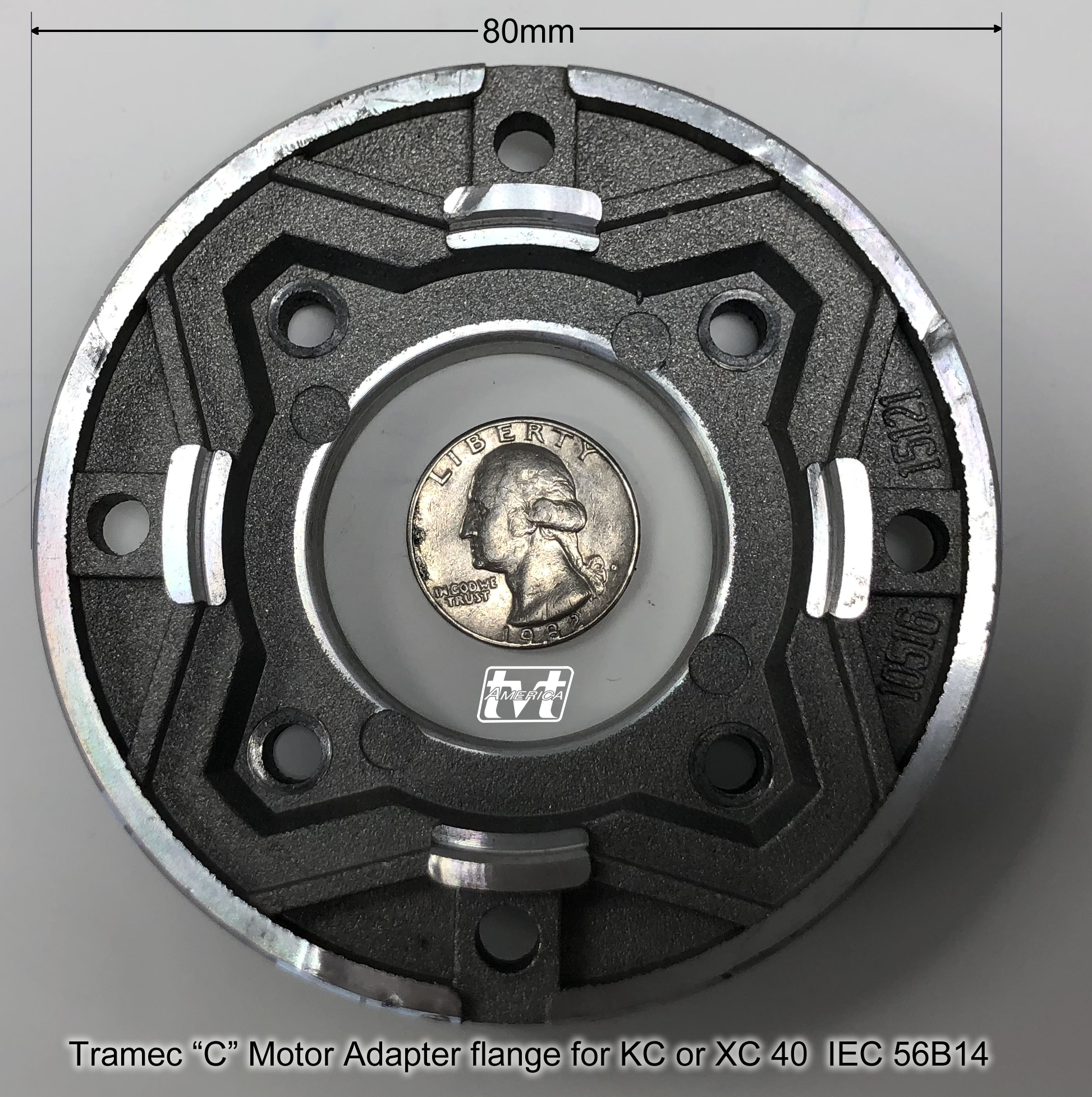

• Motor IEC 56 has 09mm shaft and standard motor flanges are 120mm (56B5) and 80mm (56B14).

* some OEM customers will specify smaller than frame flanges on their motors, so please check your motors flange before selecting.  Confirm shaft dimension of your motors rotor before ordering.

Type XA40 can use F, H, and HF kits (click to visit those pages) if you have selected the XA40 gearbox and require a motor input kit.
