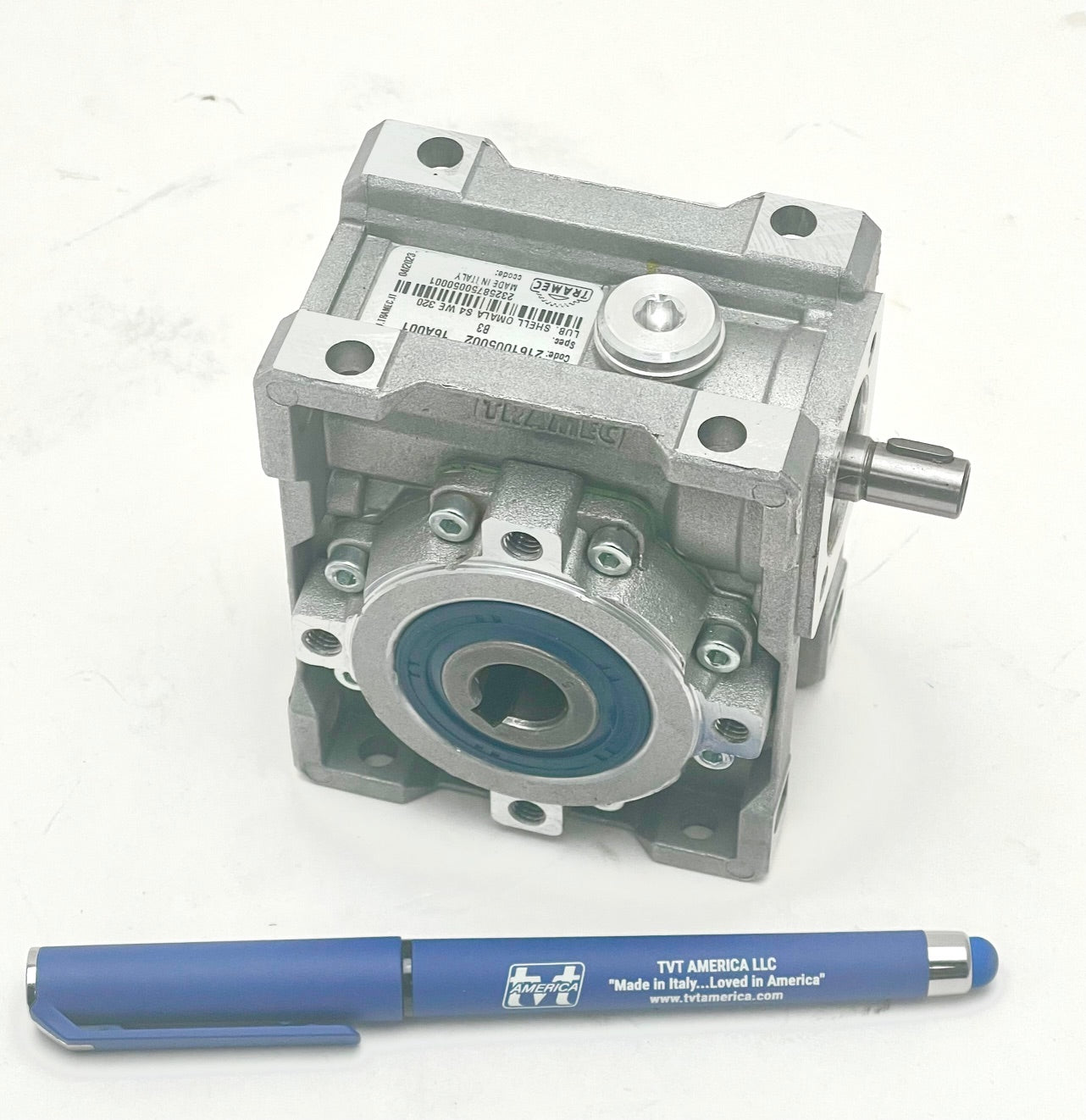

XA30

X series Universal Worm-Gear Reducer by Tramec

30mm center distance

ratios: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 65, 80, and 100 available.

Solid shaft input: 9mm diameter x 15mm in length with 3mm seated feather key.

Output Bore: 14mm to H7 tolerance with 5mm wide keyway

Housing: Paint & Fin free die-cast aluminum alloy.

Lubrication: Shell Omala S4 WE 320 synthetic oil, maintenance free for life.

Drop-In upgrade for MV030 Motovario and other brands.

100% designed & manufactured in Bologna, Italy.

2161005002, 2161038001, 2161005002, 2161059001, 2161017001,
