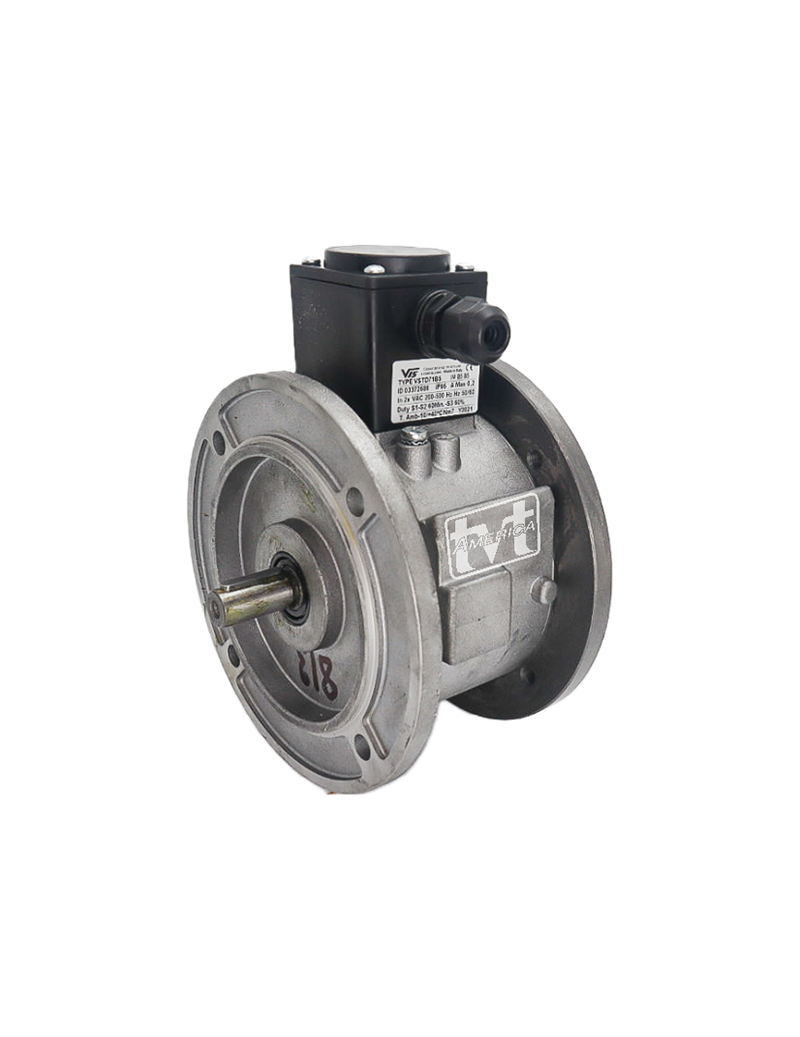

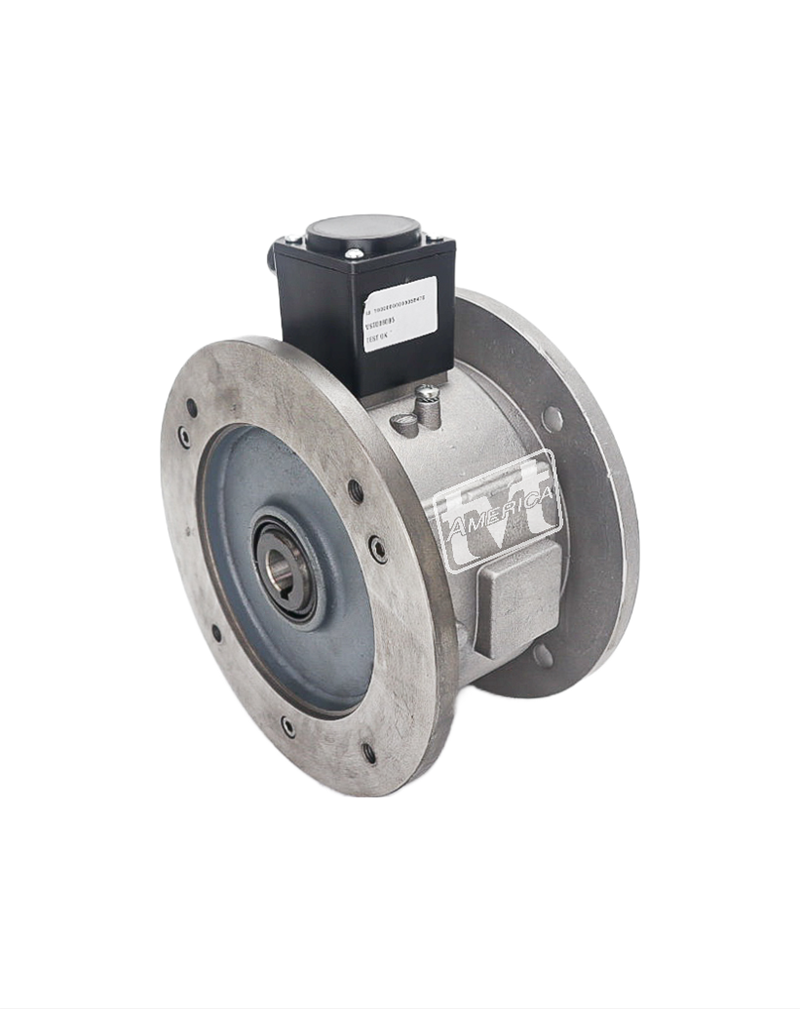

VIS 80b5

TVT VIS IEC SuperDuty 80B5/80B5 Brake

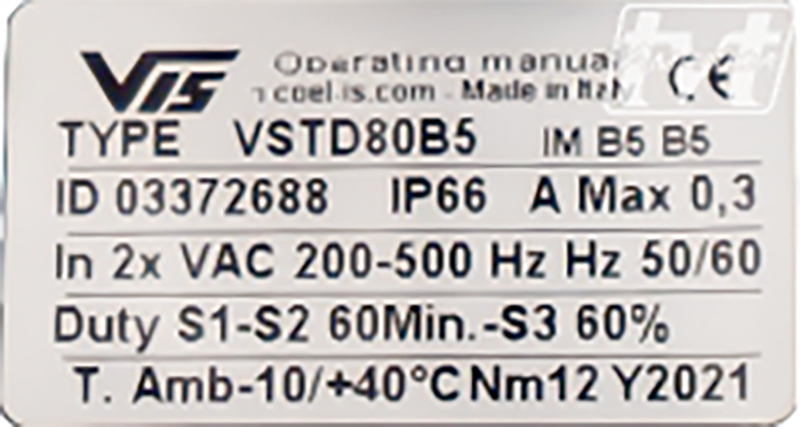

- VSTD80B5

- Water & Dust Resistant IP66 Standard

- ATEX EX II-22 3G/3D

- 200 to 500Vac input voltage standard, 24Vdc optional MTO.

- Strong & Silent operation

- High Strength Engineering Cast Iron Construction

- Superior to competitors.

- Large brake surface area for long life and high torque ratings

IEC 80B5 Input & 80B5 Output

Max power: 60 Watts

Fast Response: 60 milliseconds close, 60 milliseconds open.

12 Nm stopping & holding torque.

* INQUIRE for Distributor Opportunities & OEM Volume prices.
