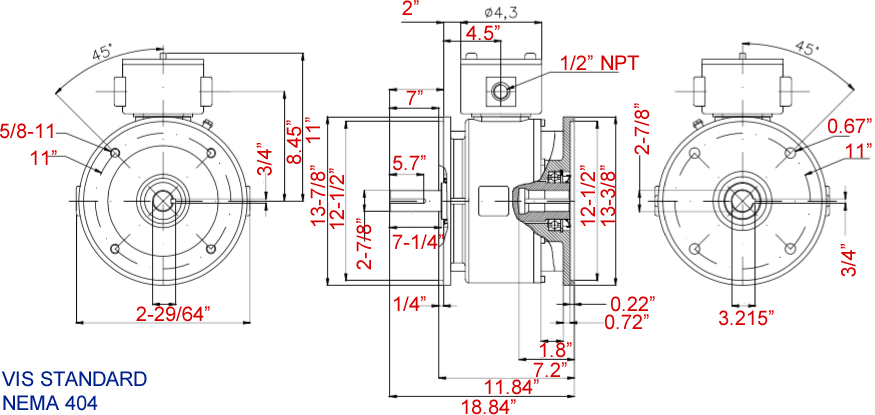

VIS 404-5

TVT VIS NEMA SuperDuty C-face Motor Brakes

- Water & Dust Resistant IP66 Standard

- NEMA 4

- CSAus Class II, Division 2, Groups F and G.

- 200 to 500Vac input voltage standard, 24Vdc optional MTO.

- Strong & Silent operation

- High Strength Engineering Cast Iron Construction

- Superior to competitors.

- Large brake surface area for long life and high torque ratings

NEMA 404-405 Input & Output

Max power: 220 Watts

Fast Response: 160 milliseconds close, 140 milliseconds open.

6656in-lbs stopping & holding torque.

* Allow 6-8 weeks ARO delivery.

* INQUIRE for Distributor Opportunities & OEM Volume prices.
