TVT America

TFP71B/2

TFP71B/2

$639.83 USD
$1,280.00 USD $639.83 USD
Sale Sold out
Shipping calculated at checkout.

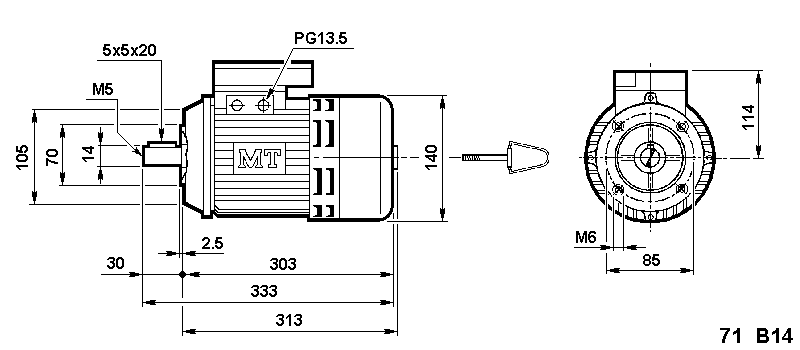

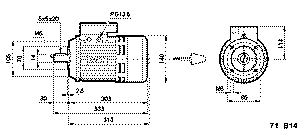

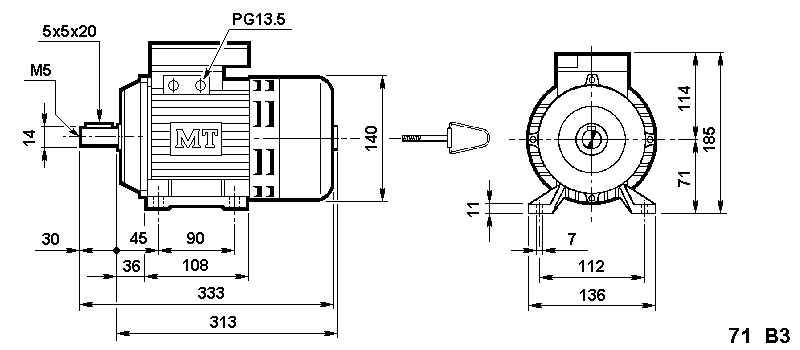

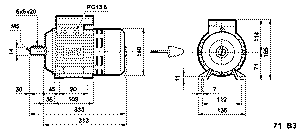

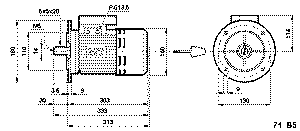

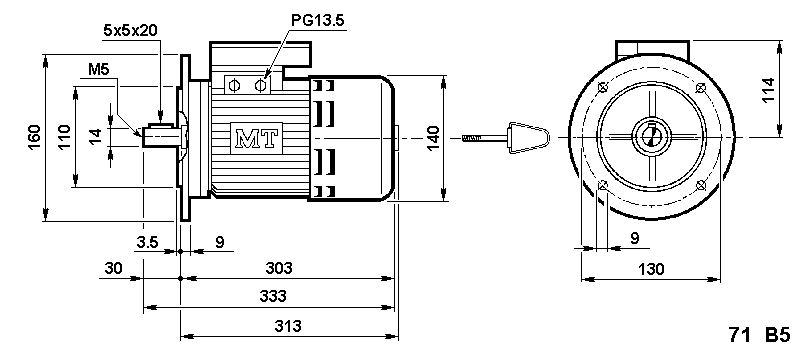

Mounting Form

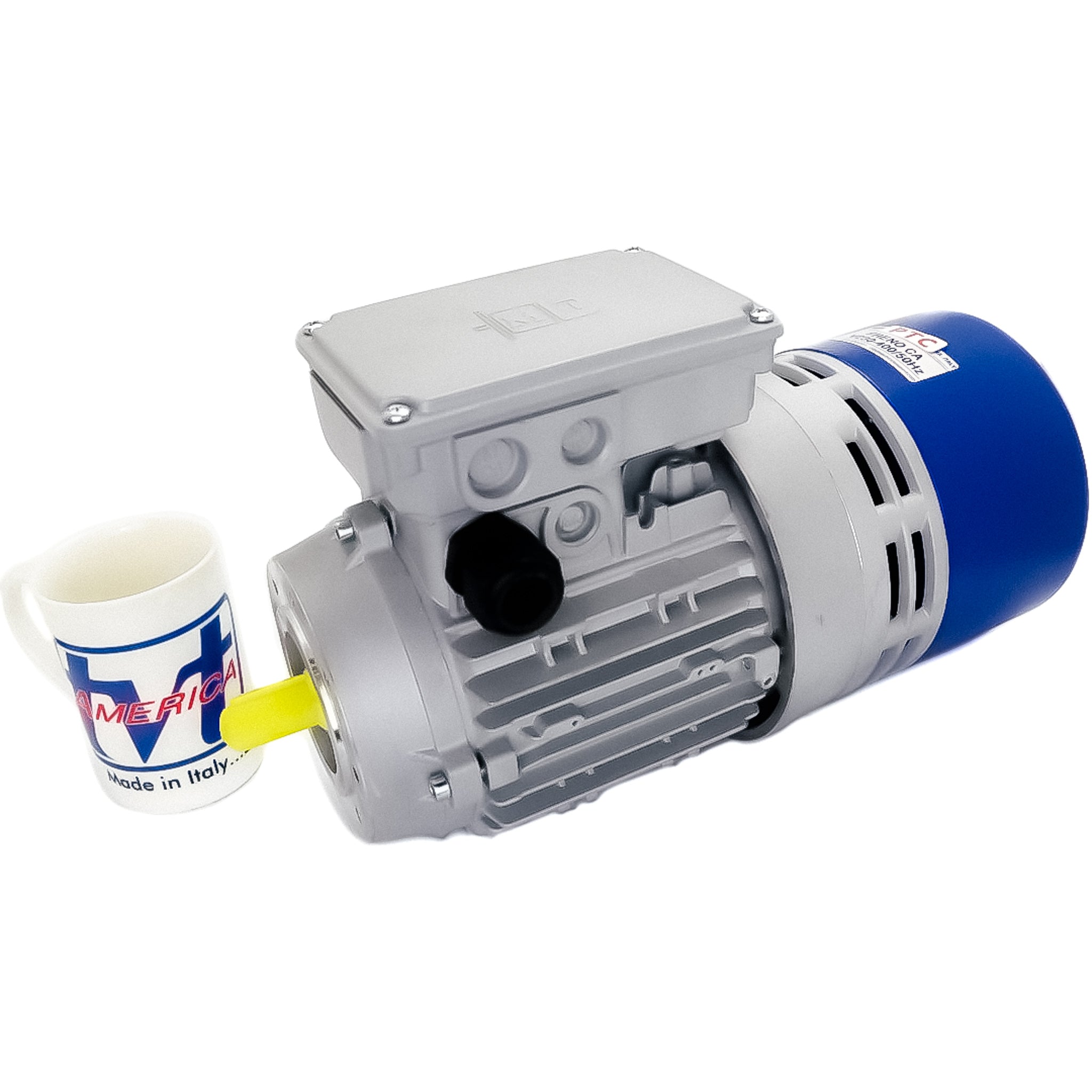

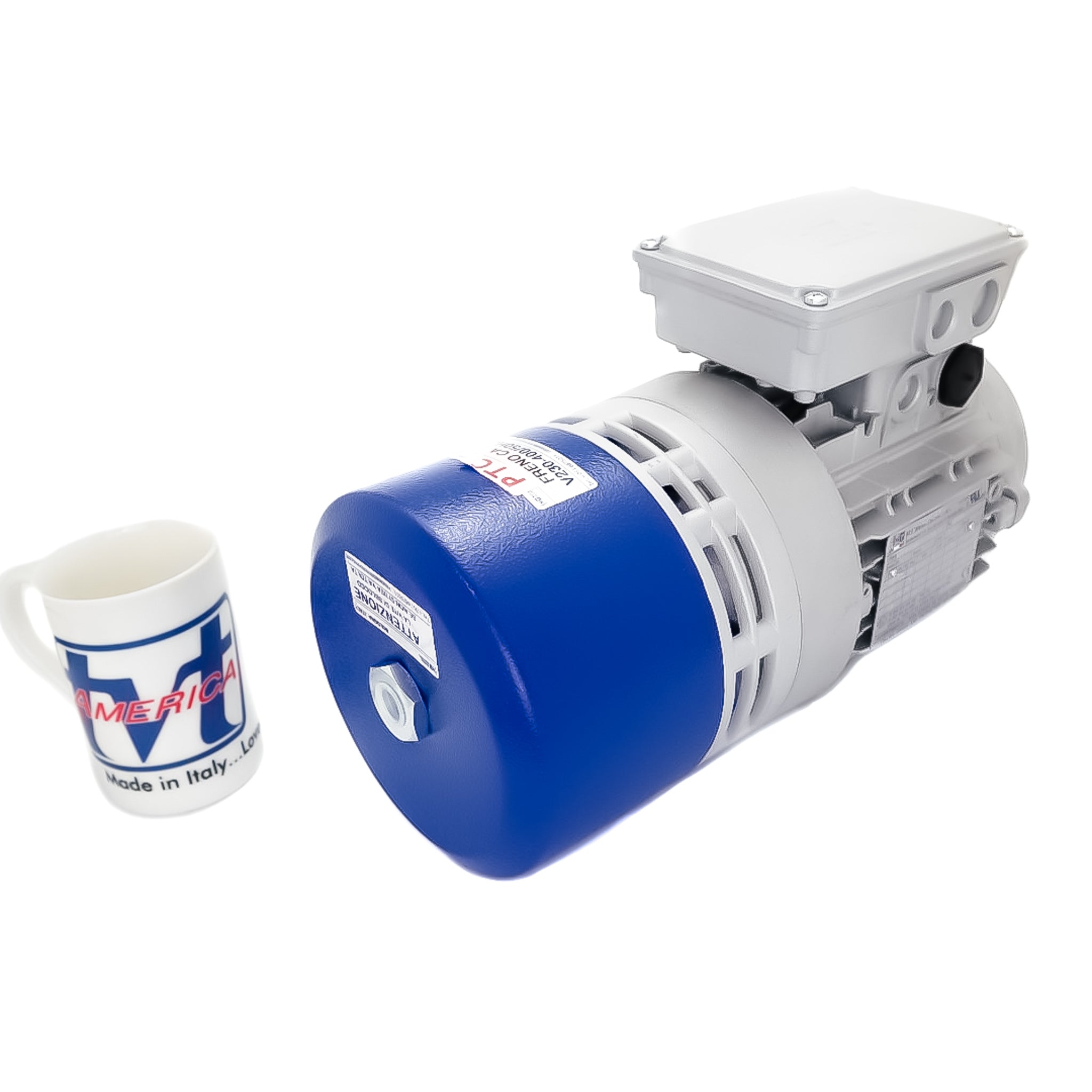

MT TFP Series High Performance 3phase AC Brake motor

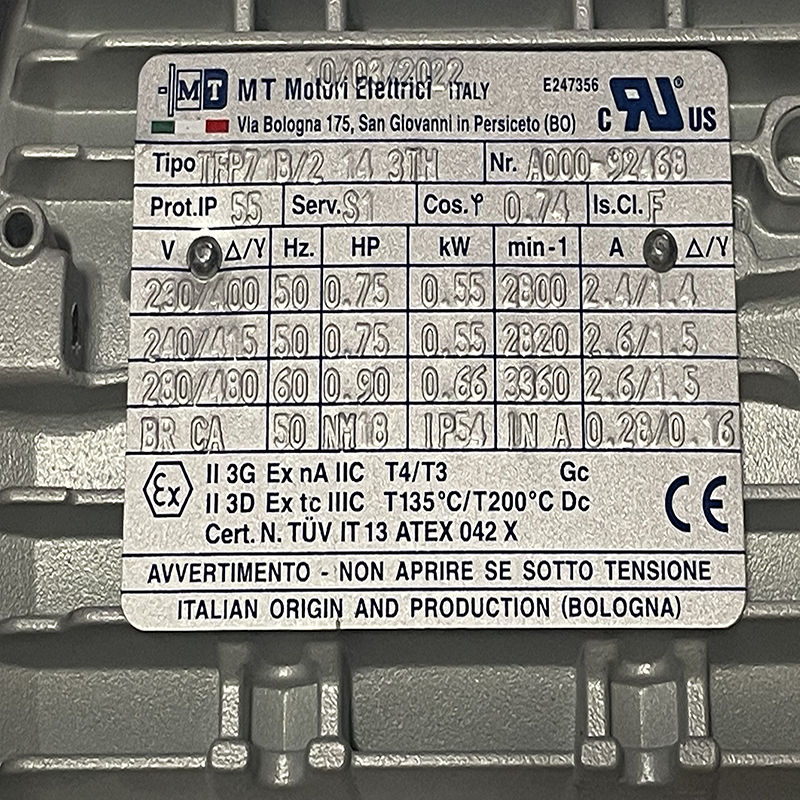

IEC 71b 2pole 0.77Kw 230∆/400Y Volts/50hz, 277∆/480Y Volts 60Hz 1.2 Service factor
Ingress Protection 5 Dust, 4 Solids, Class F Insulation, S1 Continuous Duty

PTC Thermistor thermal protectors in stator windings.

3ph AC brake Standard 230∆/400Y-Volts 50Hz, 277∆/480 Volts 60Hz. 24Vdc & 103Vdc brakes optional.
Die-cast Aluminum Housing Polyester Epoxy Painted RAL 9006 White Aluminum for superior corrosion protection.
Pressed Steel brake Cover Polyester Epoxy Painted RAL 5010 TVT Blue.
Double Terminal Box, rotatable at 90º intervals, for convenient wiring and Protection IP56

UL/CSA/CE listed, ATEX Ex 2-22 3G/3D certified.

Data Sheet: Download
"Made in Italy… Loved in America"®

WIRING DIAGRAM for Motor & Brake type TFP.   Opens in new window (.pdf)
