TVT America
Regular price
$582.00 USD
Sale price
$582.00 USD
Unit price
/
per
Couldn't load pickup availability

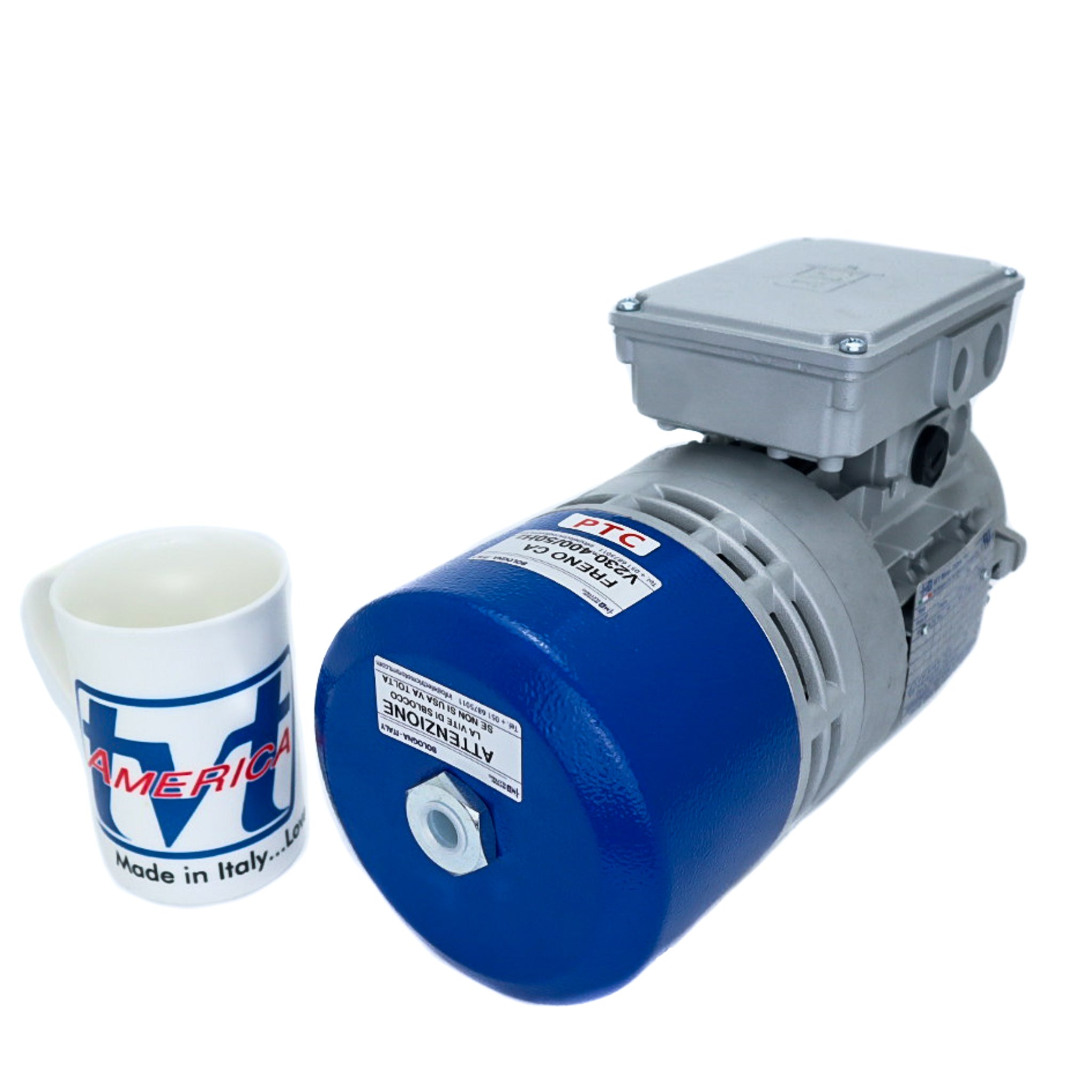

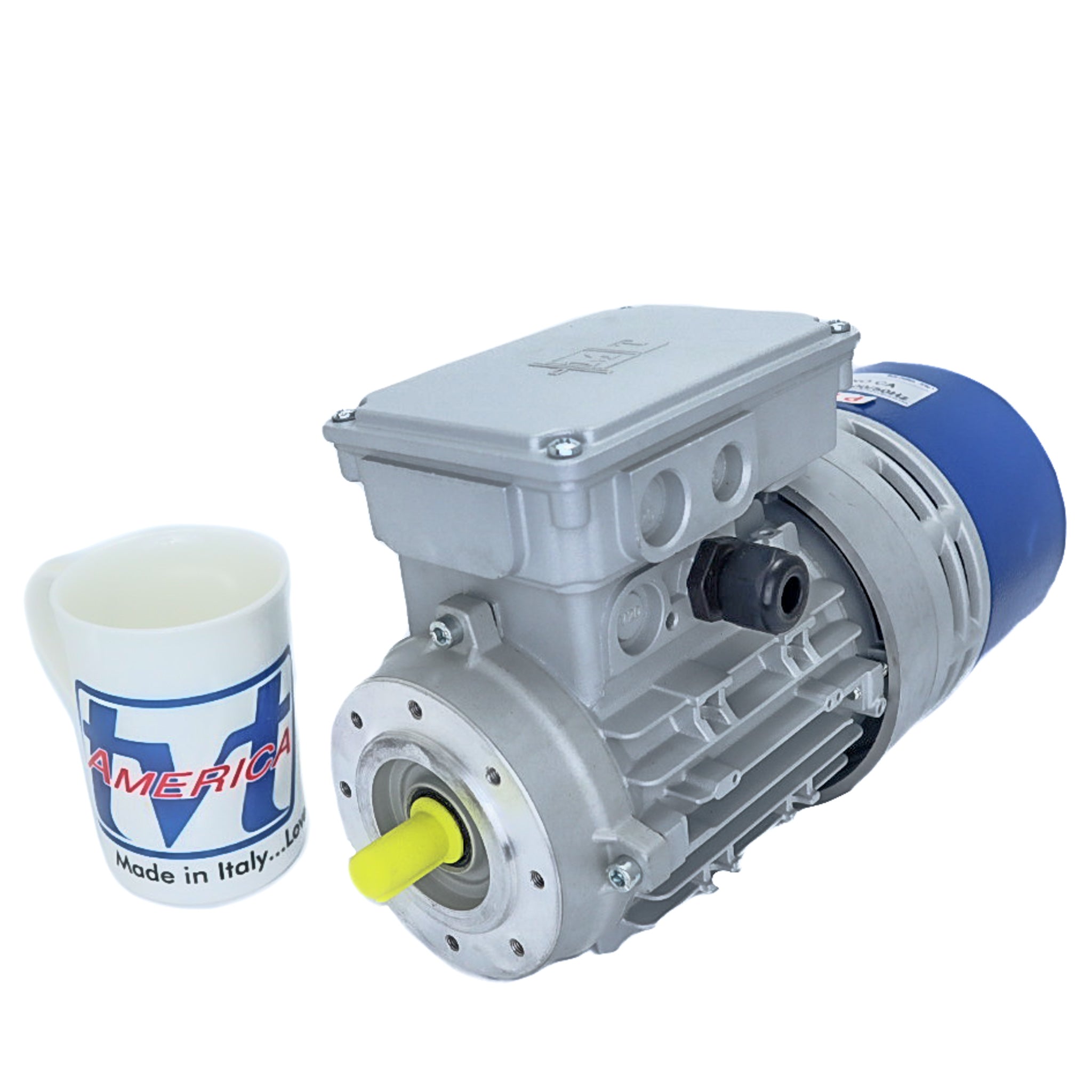

| MT TFP Series High Performance 3phase AC Brake motor |

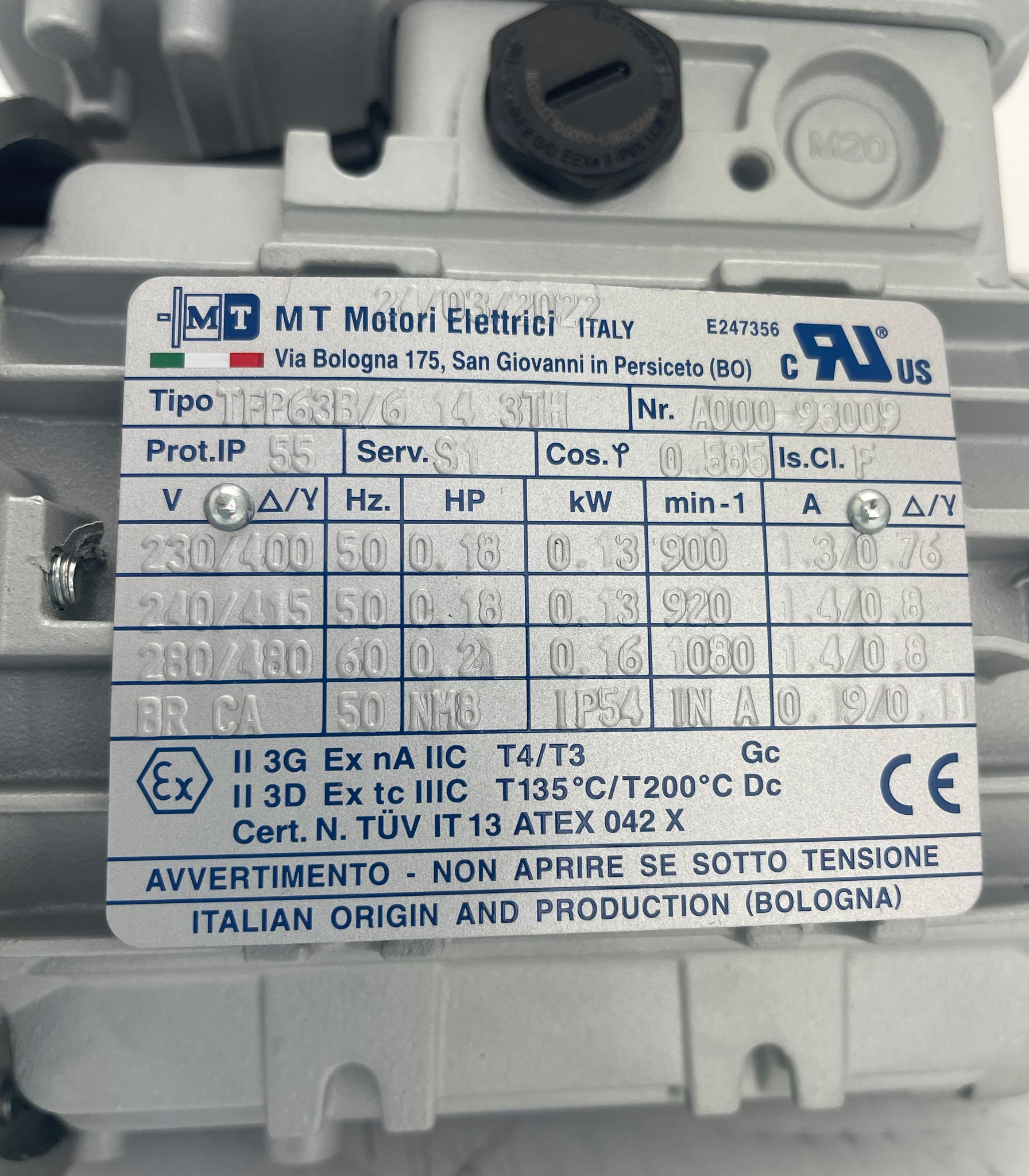

| IEC 63b 6pole 0.13Kw 230∆/400Y Volts/50hz, 277∆/480Y Volts 60Hz 1.2 Service factor |
| Ingress Protection 5 Dust, 4 Solids, Class F Insulation, S1 Continuous Duty |
|
PTC Thermistor thermal protectors in stator windings.
3ph AC brake Standard 230∆/400Y-Volts 50Hz, 277∆/480 Volts 60Hz. 24Vdc & 103Vdc brakes optional.
|
| Die-cast Aluminum Housing Polyester Epoxy Painted RAL 9006 White Aluminum for superior corrosion protection. |
| Pressed Steel brake Cover Polyester Epoxy Painted RAL 5010 TVT Blue. |
| Double Terminal Box, rotatable at 90º intervals, for convenient wiring and Protection IP56 |
|
UL/CSA/CE listed, ATEX Ex 2-22 3G/3D certified.

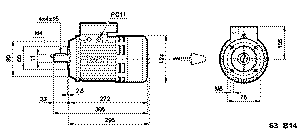

Data Sheet: Download
|
| "Made in Italy… Loved in America"® |
WIRING DIAGRAM for Motor & Brake type TFP. Opens in new window (.pdf)
