Poggi Spa

Poggi Bevel Gearbox 2011

Poggi Bevel Gearbox 2011

$583.50 USD
$1,167.00 USD $583.50 USD
Sale Sold out
Shipping calculated at checkout.
Model

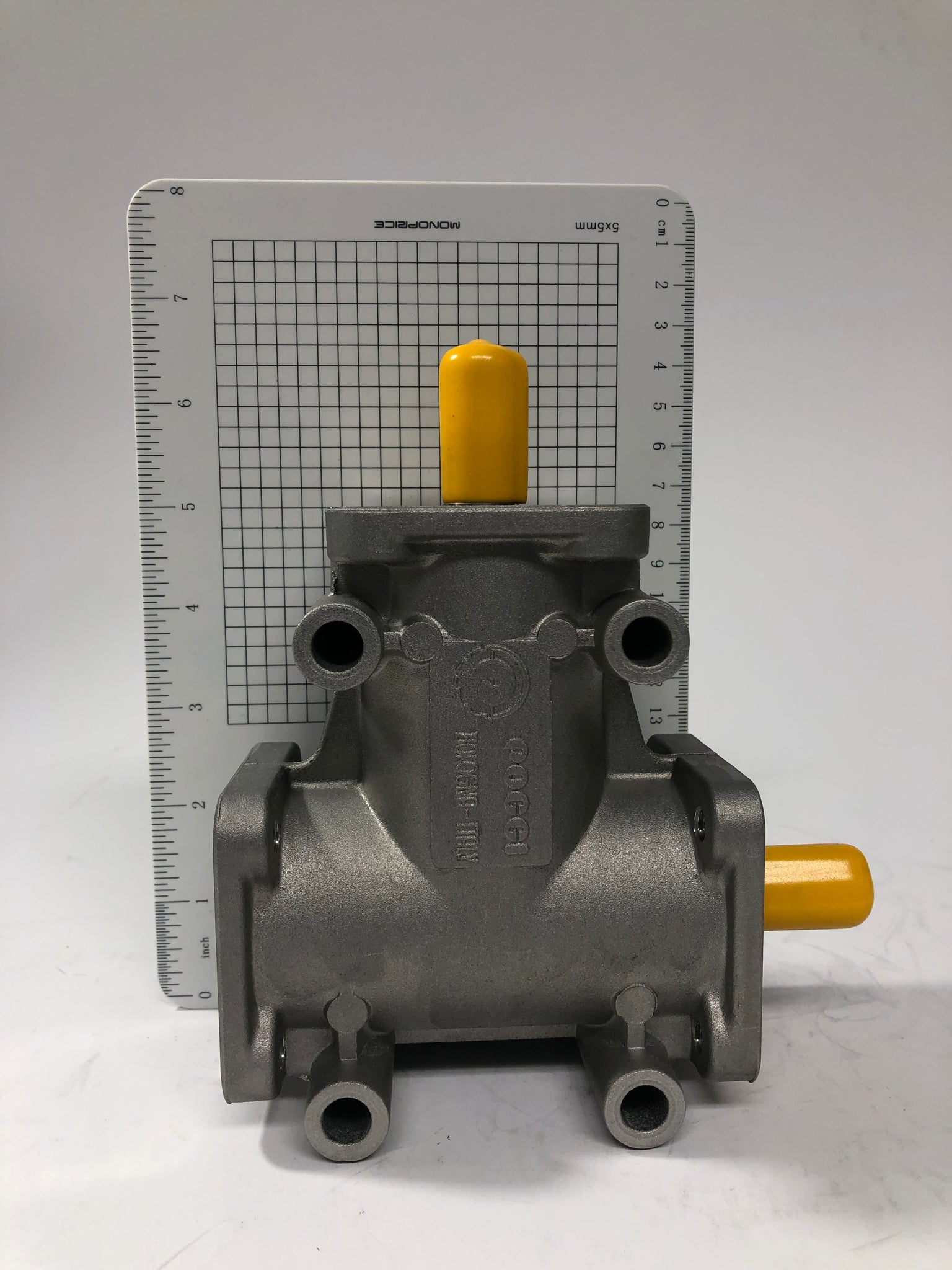

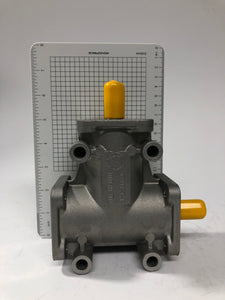

Poggi® Right angle gearbox 2011 Series. Aluminum alloy housing featuring fully machined flanges with threaded holes.  Hardened, tempered and ground alloy steel shafts supported by electric motor grade deep groove ball bearings, Gleason spiral bevel gears made of hardened, tempered and ground alloy steel for silent and efficient operation in either direction. Synthetic lubricated and maintenance free for life fit with spring lip oil seals for clean leak free operation, High Temperature Viton® seals available on request.  Designed for minimal and repeatable backlash, 15 to 30 arc minutes standard, reduced backlash available on request.  Operational temperature of 0º to 170ºF (-18º to 80ªC).

* Prices are 1 piece User Pricing.  For OEM Production or Stocking Distributor discounts please inquire with sales@tvtamerica.com.

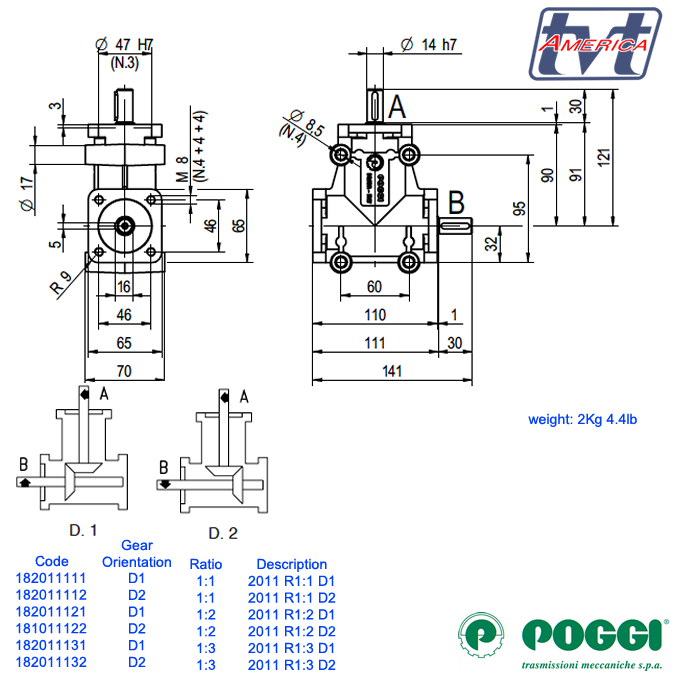

Spec sheet: 182011111

Spec sheet: 182011112

Spec sheet: 182011121

Spec sheet: 182011122

Spec sheet: 182011131

Spec sheet: 182011132

Interchanges

 Poggi Bonfiglioli STM Chiaravalli Atlanta
182011111 RAN18.14.SA1 HS  ZL432 AB 1:1 R3141101 52.03.141 LH/RH
182011112  RAN 18.14 SB1 HS ZL432 AC 1:1 R3141102 52.03.141 RH/RH
182011121 RAN 18.14 SA2 HS ZL432 AB 2:1 R3141203 52.05.191 LH/RH
182011122 RAN 18.14 SB2 HS ZL452 AC 2:1 R3141204 52.05.191 RH/RH
182011131 NA NA R3141205 52.07.141 LH/RH
182011132 NA NA R3141206 52.07.141 RH/RH
