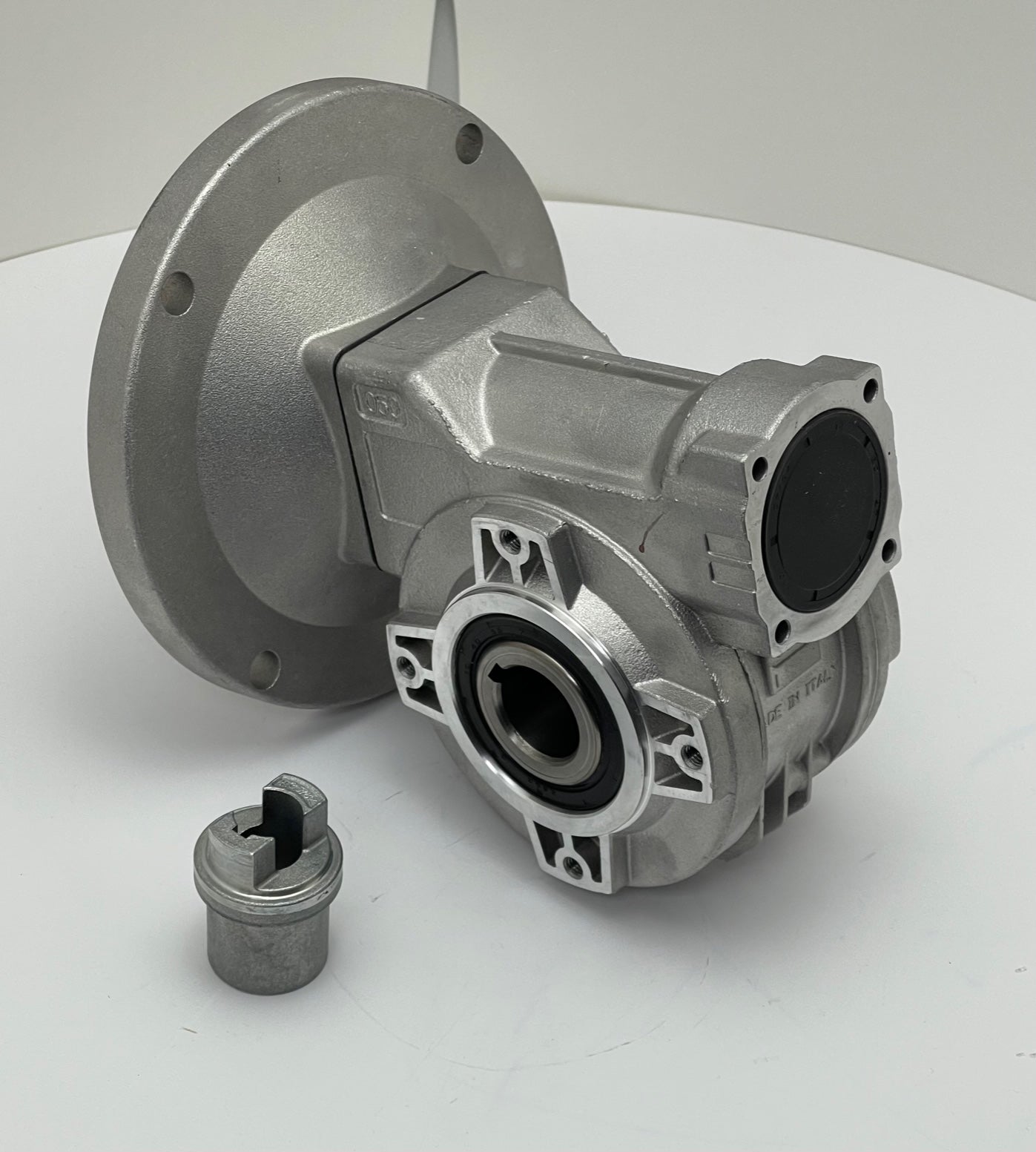

TVT® P series compact modular worm-gear reducer.
50mm center distance with 1.00" output bore
Unpainted Aluminum Construction, ISO 320 Synthetic lubed for life.
Input -

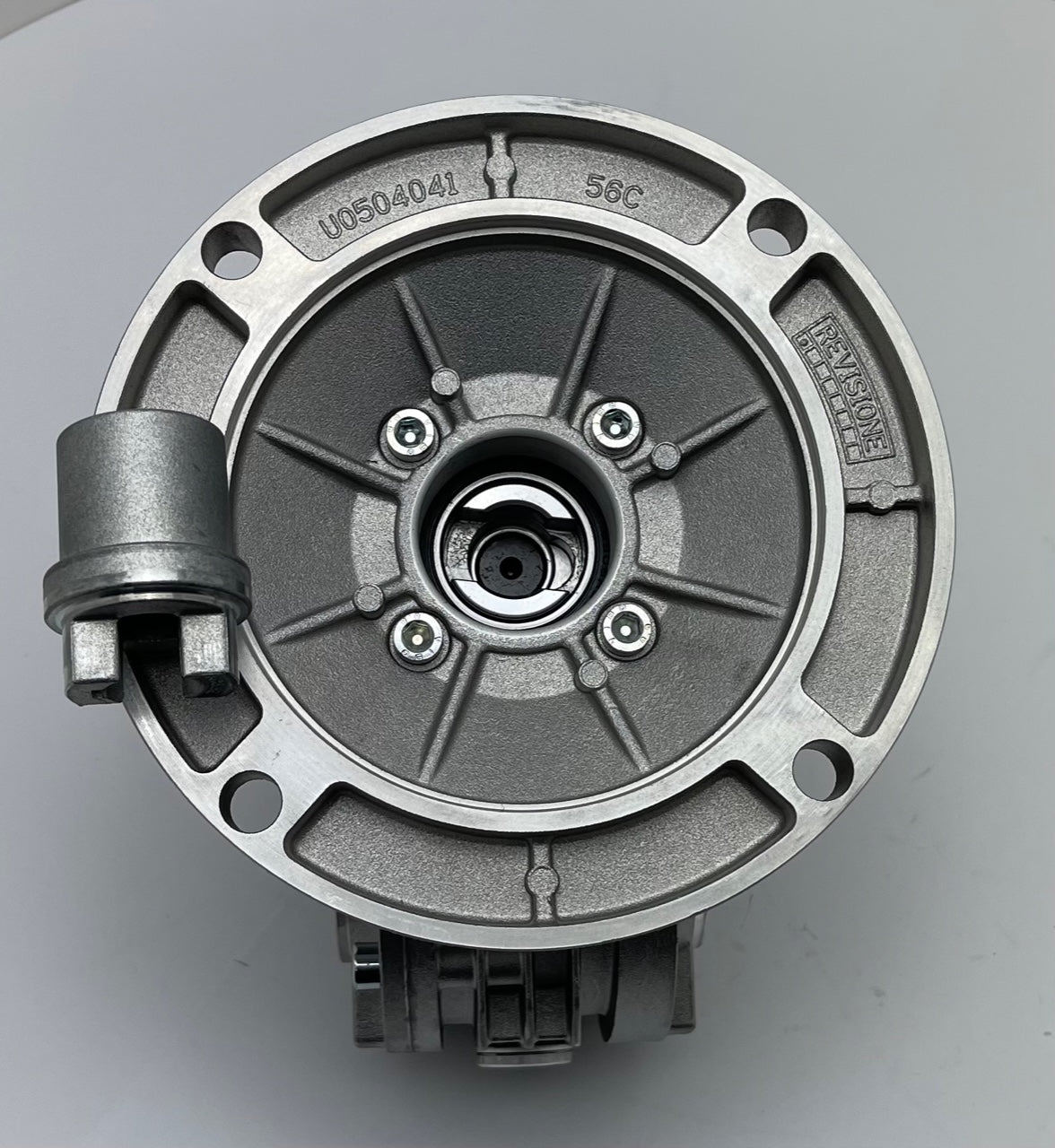

NEMA 56C

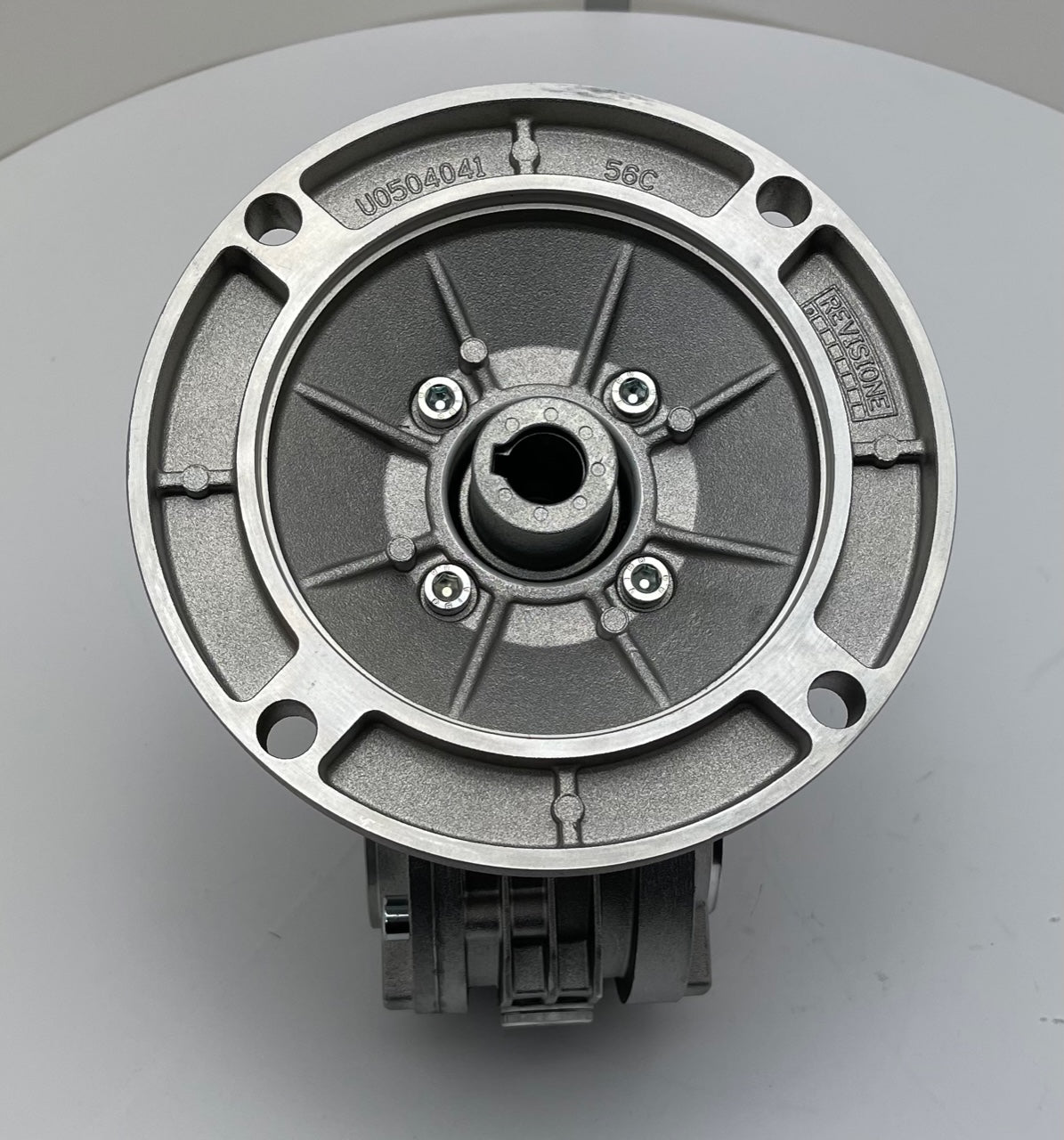

NEMA 143-145TC
IEC 71B14
IEC 71B5
IEC 80B14
IEC 80B5
Mounting forms -
FB - Shaft mount - standard
PAB foot mount - base to center of output 3.228 inch.
PAS foot mount - base to center of output 3.346 inch.
FC output flange -
FL output flange -
F1 output flange -
F2 output flange -
F3 output flange -
BR torque arm -
Accessories -
Single Output Shaft 1.00" diameter
Double Output Shaft 1.00" diameter
Input Shaft - 0.625" diameter x 1.415" length with 3/16" key.
Available Ratios -
7, 10, 14, 18, 26, 30, 36, 43, 50, 60, 68, 80, 100
* * * PLEASE ALLOW 3-4 Weeks ARO DELIVERY * * *
INQUIRE FOR VOLUME PRICING
