Motori Elettrici MT® 3ph AC IEC Metric Motor

Series TN, Size 80B, 6 pole, 0.55Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN80B/6

To select & download Cad Files for this motor (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in a new window.

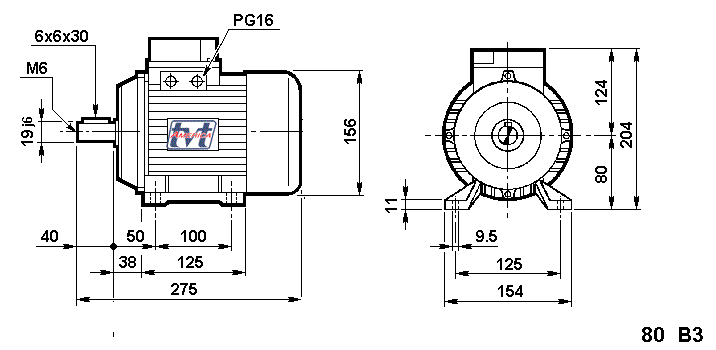

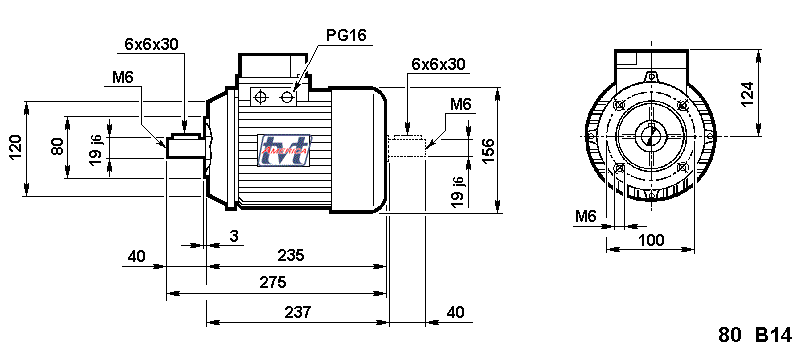

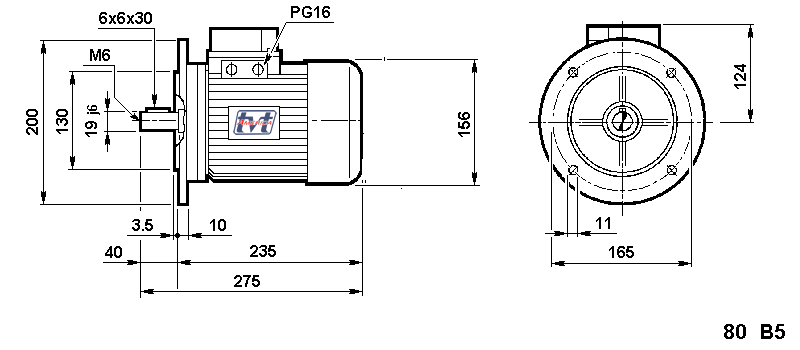

* B34 and B35 will include reposition-able feet with the B14 or B5 flange type.
