Motori Elettrici MT® 3ph AC IEC Metric Motor

Series TN, Size 80A, 4 pole, 0.55Kw 230/400V/50hz, 277/480V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN80A/4 EU

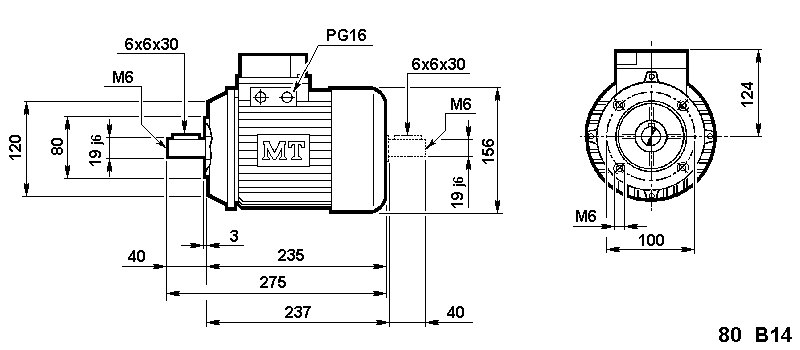

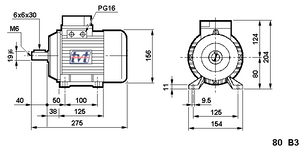

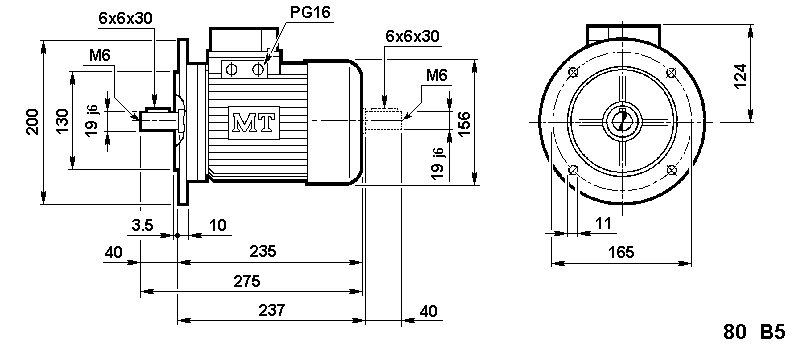

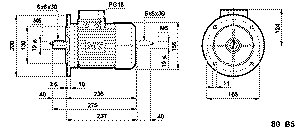

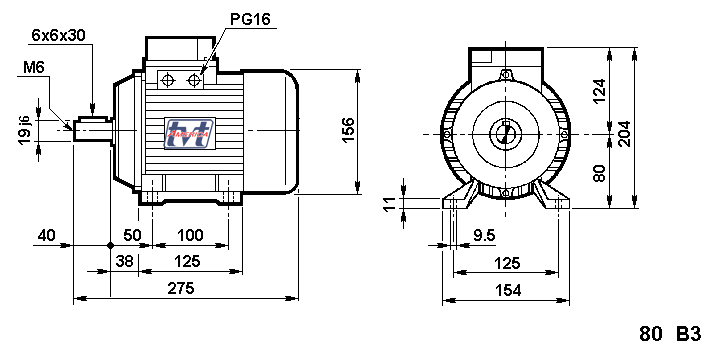

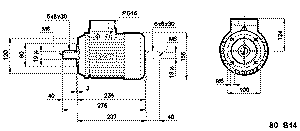

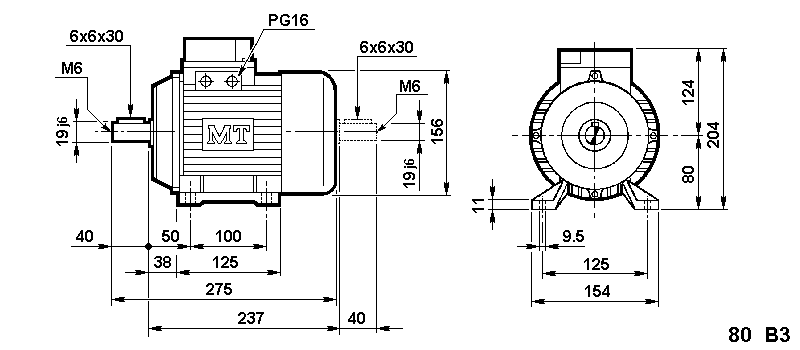

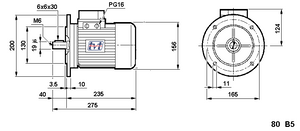

To select & download Cad Files for this motor (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in a new window.
