TVT America
MT® TN56A6 NA
MT® TN56A6 NA
Regular price
$283.00 USD
Regular price
$565.00 USD
Sale price
$283.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Motori Elettrici MT® 3ph AC IEC Metric Motor
Series TN, Size 56, 6 pole, 0.06Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service. Typo: TN56A/6 NA

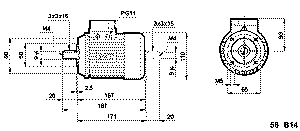

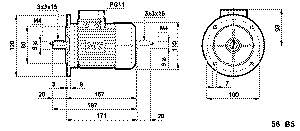

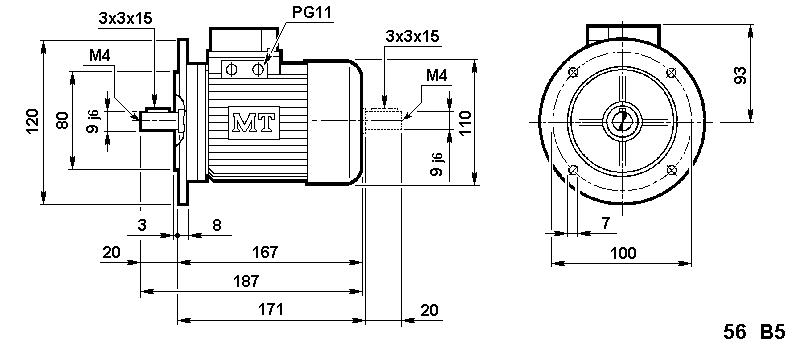

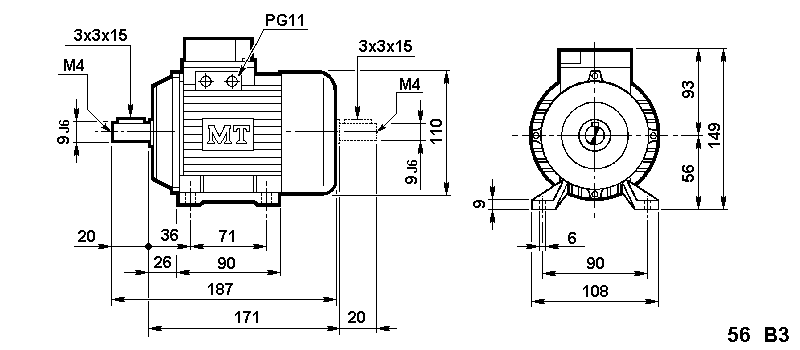

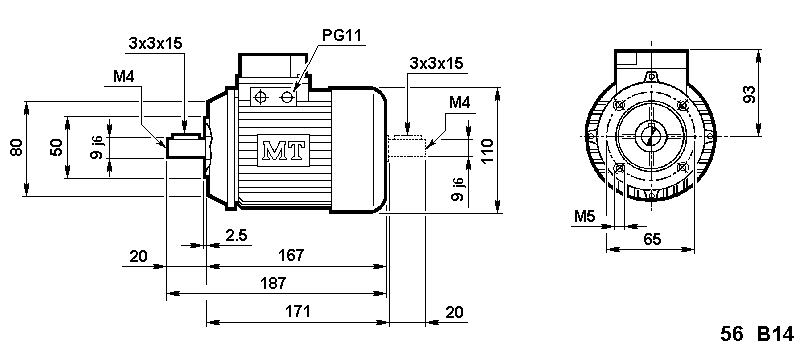

To select & download Cad Files for this motor, (click here) new window will open.
Click Here to open .pdf spec sheet for this motor in a new window.
Share
![MT® TN56A6 NA](http://www.tvtamerica.net/cdn/shop/products/Tn56b3_d01ce71a-75ae-4801-8abb-b6d6ce8586ca.gif?v=1553556214&width=1445)
![MT® TN56A6 NA](http://www.tvtamerica.net/cdn/shop/products/Tn56b5_731bf2d5-9653-4ecd-94b2-b5b4816d9afd.gif?v=1553556215&width=1445)
![MT® TN56A6 NA](http://www.tvtamerica.net/cdn/shop/products/Tn56b14_e2480b31-b227-4928-9573-973ea04d58f7.gif?v=1553556216&width=1445)
