Motori Elettrici MT® 3ph AC IEC Metric Motor

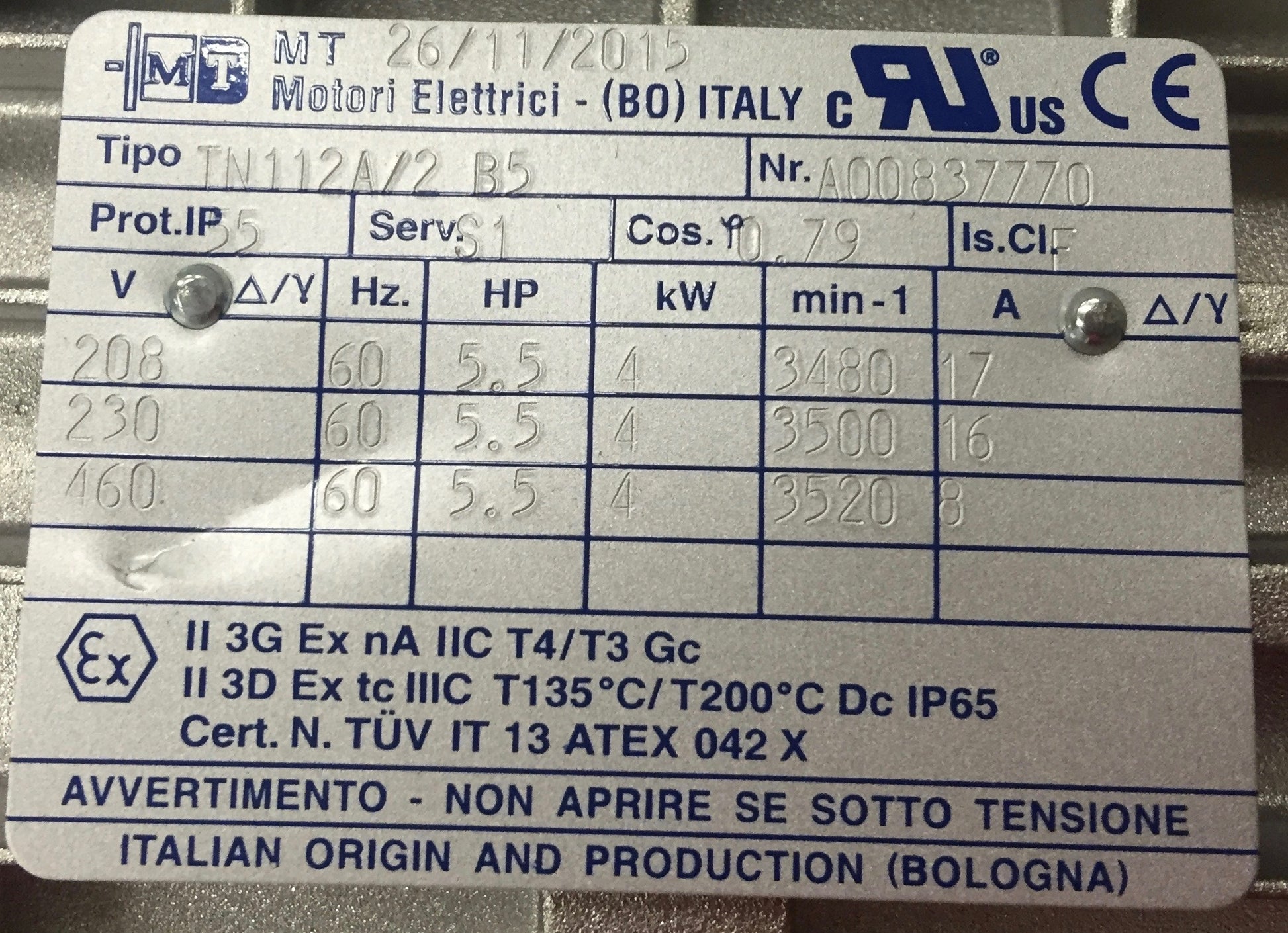

Series TN, Size 112A, 2 pole, 4Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN112A/2

To select & download Cad Files for this motor, (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in new window.
