Motori Elettrici MT® 3ph AC IEC Metric Motor

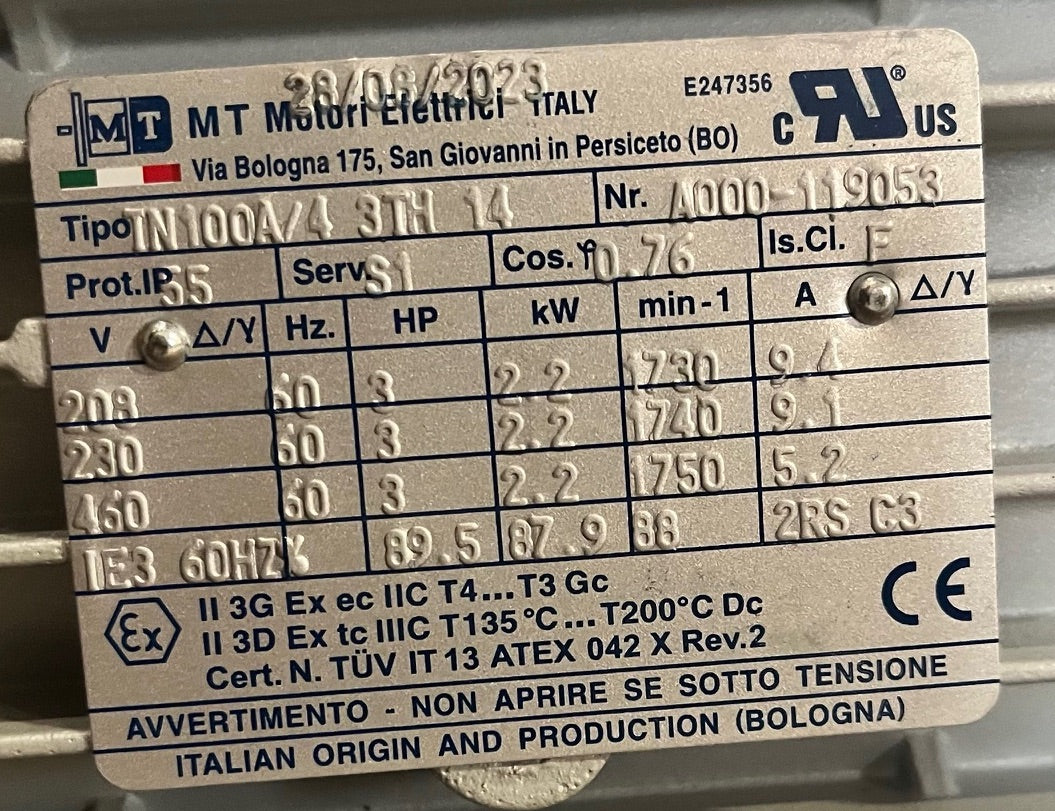

Series TN, Size 100A, 4 pole, 2.2Kw 1.2 Service Factor 200/400V/50hz, 230/460V/60Hz, 208V/60Hz 10 Service factor,  Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  3 Thermistors in stator type PTC,  Typo: IE3 TN100A/4 NA 3TH

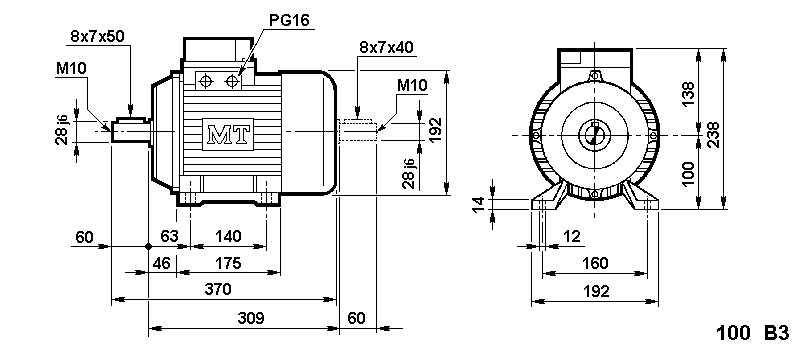

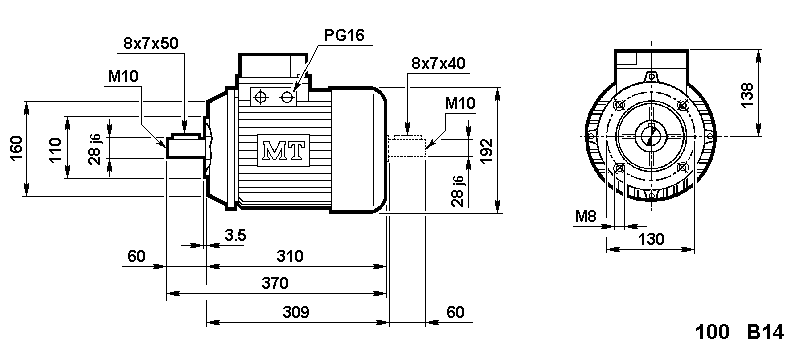

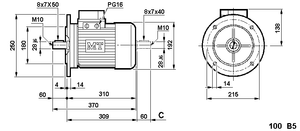

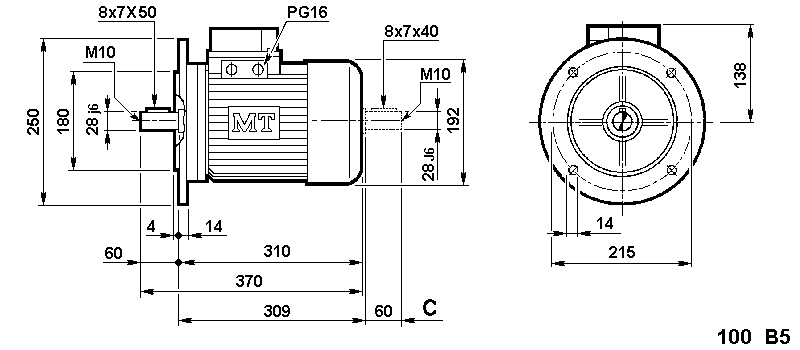

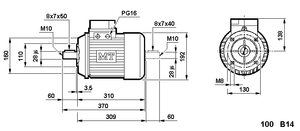

To select & download Cad Files for this motor, (click here) new window will open.

NORTH AMERICAN DISTRIBUTION CENTER FAST SHIPPING FROM USA

Click Here to open .pdf spec sheet for this motor in new window.
