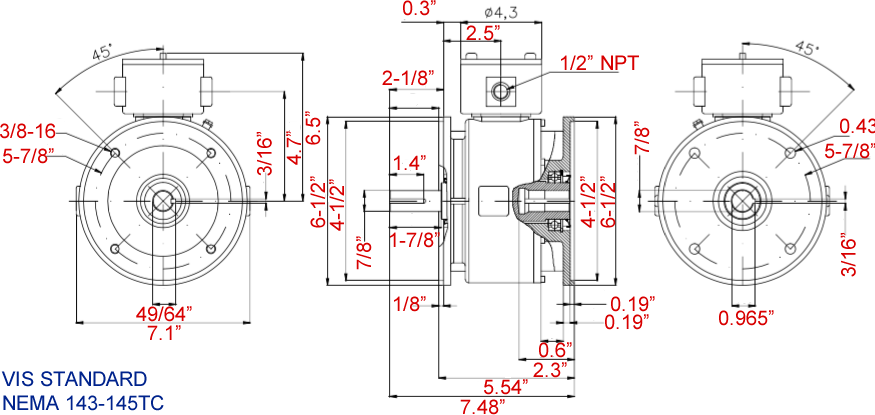

VIS 143-145TC

TVT VIS NEMA SUPERDUTY C-face Motor Brakes

- Water & Dust Resistant IP66 Standard

- NEMA 4

- CSAus Class II, Division 2, Groups F and G.

- 200 to 500Vac input voltage standard, 24Vdc optional MTO.

- Strong & Silent operation

- High Strength Engineering Cast Iron Construction

- Superior to competitors in performance and durability.

- Large brake surface area for longer life and high torque ratings

NEMA 56C Input & Output

Max power: 60 Watts

Fast Response: 60 milliseconds close, 60 milliseconds open.

195 in-lbs stopping & holding torque.

High Performance Upgrade from Dings 60 series and Sterns 56 and 56700 series

* INQUIRE for Distributor Opportunities & OEM Volume prices.61001-551

                                   1-056-701-0X

                                                61001-5153                                        1-056-702-0X

                                                61001-5155                                        1-056-704-0X

                                                61003-551                                          1-056-711-0X

                                                61003-5153                                        1-056-712-0X

                                                61003-5155                                        1-056-712-0X

                                                61003-5145                                        1-056-714-0X

VSTDN143/5
