Carpanelli

Carpanelli MM80a2 0.75Kw/1hp 110/230V 1ph AC Metric Motor or Brake Motor

Carpanelli MM80a2 0.75Kw/1hp 110/230V 1ph AC Metric Motor or Brake Motor

$320.89 USD
$891.00 USD $320.89 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor
  • L118145919937993

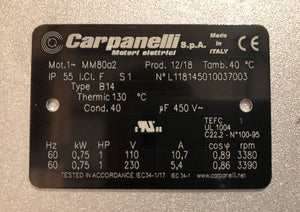

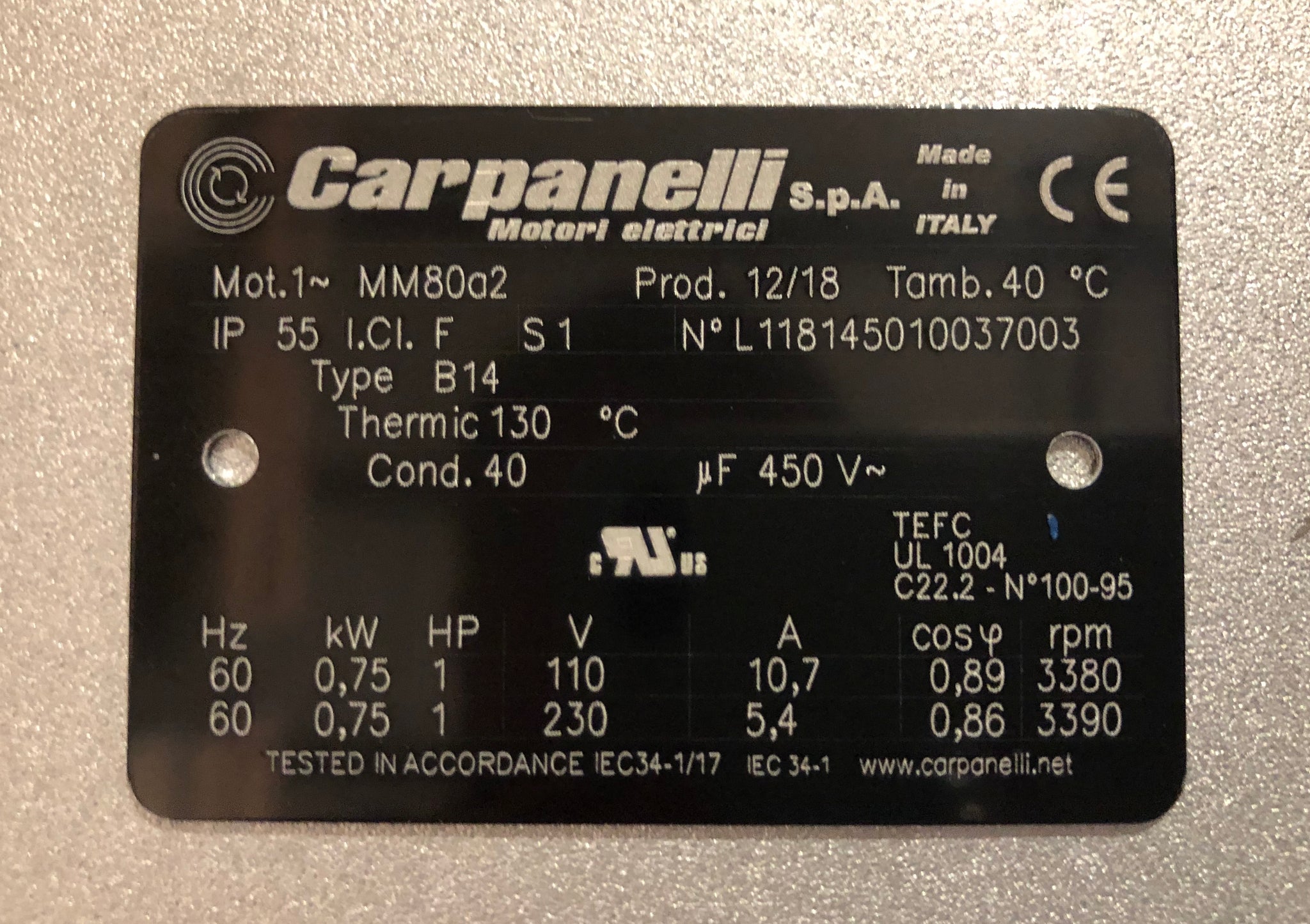

  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM80a2 110/230V/60Hz
  • 0.75Kw/1.0Hp  3380/3390 rpm 110/230V/60hz.
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor
  • Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • Standard Production & Shipping 2-3 days ARO <5 pieces. (5> inquire).
  • Expedited Production & Shipping Available (SAME DAY) sales@tvtamerica.com
  • Wiring Diagram
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V
.75 1.0 .000875 60

.89/0.86

10.7

5.4

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight

Kg

Weight

Lbs
2.6 5.2 x3.9 3390 40 11.3 25



Dimensions B3

 A B C D E F G G1 H
125 100 50 19 40 30 221 157 80
K I L L1 L2 M N O P
9.5 218 275 235 75 110 110 168 M5
Q R U U1 V X Y  Z
50 60 125 154 11 17.5 141 156



Dimensions B5 (see illustration)

 A B C D E F G I L1
130 165 200 19 40 30 12 241 235
L2 M N P Q R S Y Z
75 110 110 3.5 50 60 10 141 156



Dimensions B14 (see illustration)

 A B C D E F G I L1

80

 100 120 19 40 30 M6 218 235
L2 M N P Q R S Y Z
75 110 110 3 50 60 12 141 156



Dimensions Shaft (see illustration)

a b c d e f g h t

19

 40 M6 16 22 30 6 6 21.5
