Carpanelli MM71c 0.37/0.5Hp 4pole 110V/230V 1ph AC Metric Motor or Brakemotor

Carpanelli MM71c 0.37/0.5Hp 4pole 110V/230V 1ph AC Metric Motor or Brakemotor

$314.30 USD
$898.00 USD $314.30 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor
  • Carpanelli 1ph AC IEC (metric) motor

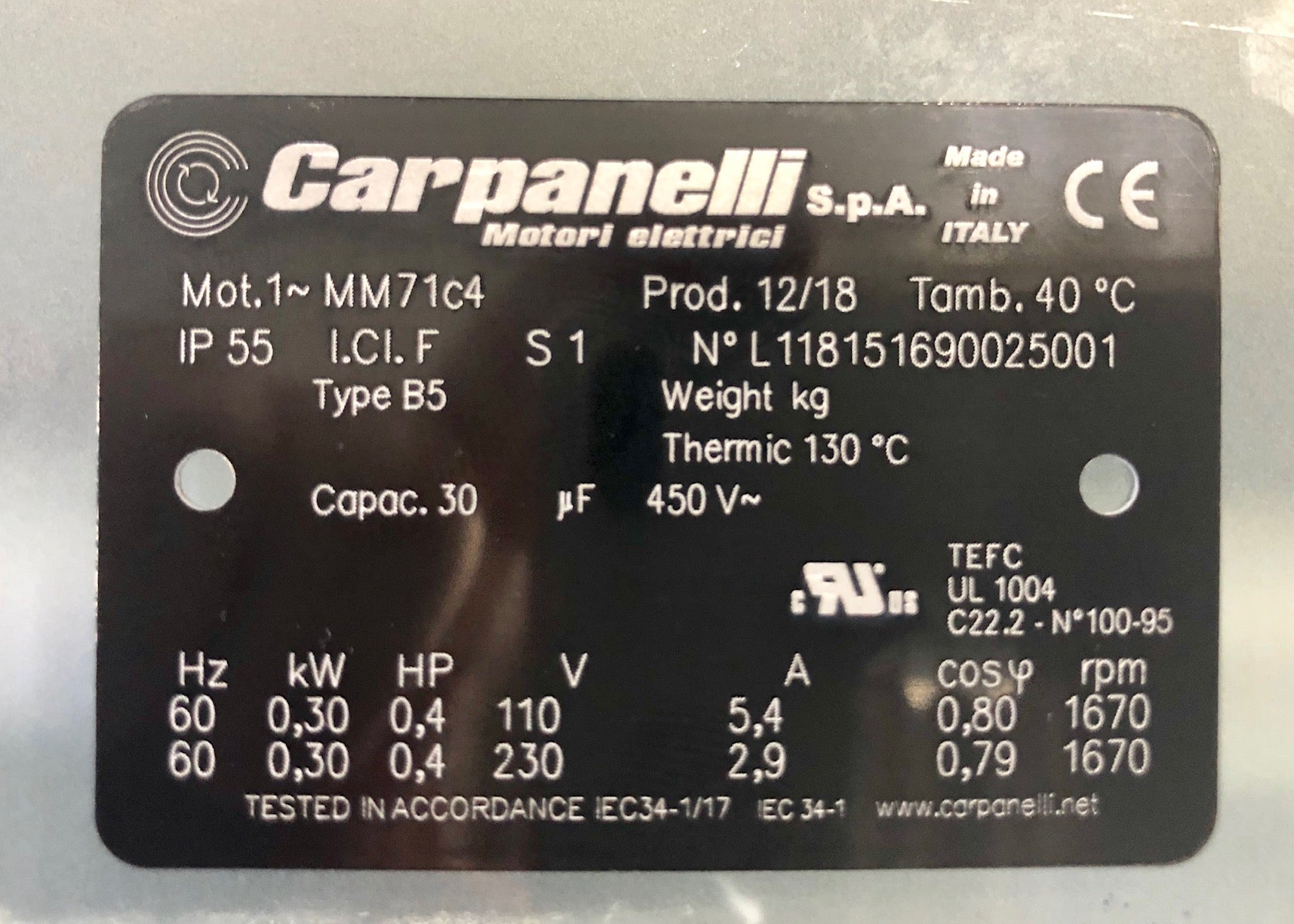

  • Model: MM71c4 115/230V/60Hz
  • 0.37Kw / 0.50Hp 4pole
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor
  • Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • Wiring Diagram



Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V
.37 .50 .000822 60

.80

5.4

2.9

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight

Kg

Weight

Lbs
2.1 4 x2.6 1670 30 6.5 14.4



Dimensions B3

 A B C D E F G G1 H
112 90 45 14 30 25 195 139 71
K I L L1 L2 M N O P
7 192 245 215 71 92 92 138 M4
Q R U U1 V X Y  Z
40 52 108 136 11 12 124 138

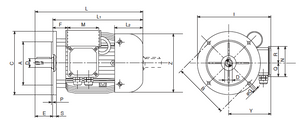

Dimensions B5 (see illustration)

 A B C D E F G I L1
110 130 160 14 30 25 10 204 215
L2 M N P Q R S Y Z
71 92 92 3.5 40 52 10 124 138



Dimensions B14 (see illustration)

 A B C D E F G I L1

70

 85 105 14 30 25 M6 192 215
L2 M N P Q R S Y Z
71 90 90 2.5 40 52 12 124 138



Dimensions Shaft (see illustration)

a b c d e f g h t

14

 30 M5 13 18 20 5 5 16
