Carpanelli
Regular price
$229.10 USD
Regular price
$636.00 USD
Sale price
$229.10 USD
Unit price
/
per
Couldn't load pickup availability
- L118155570032007

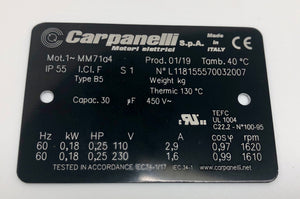

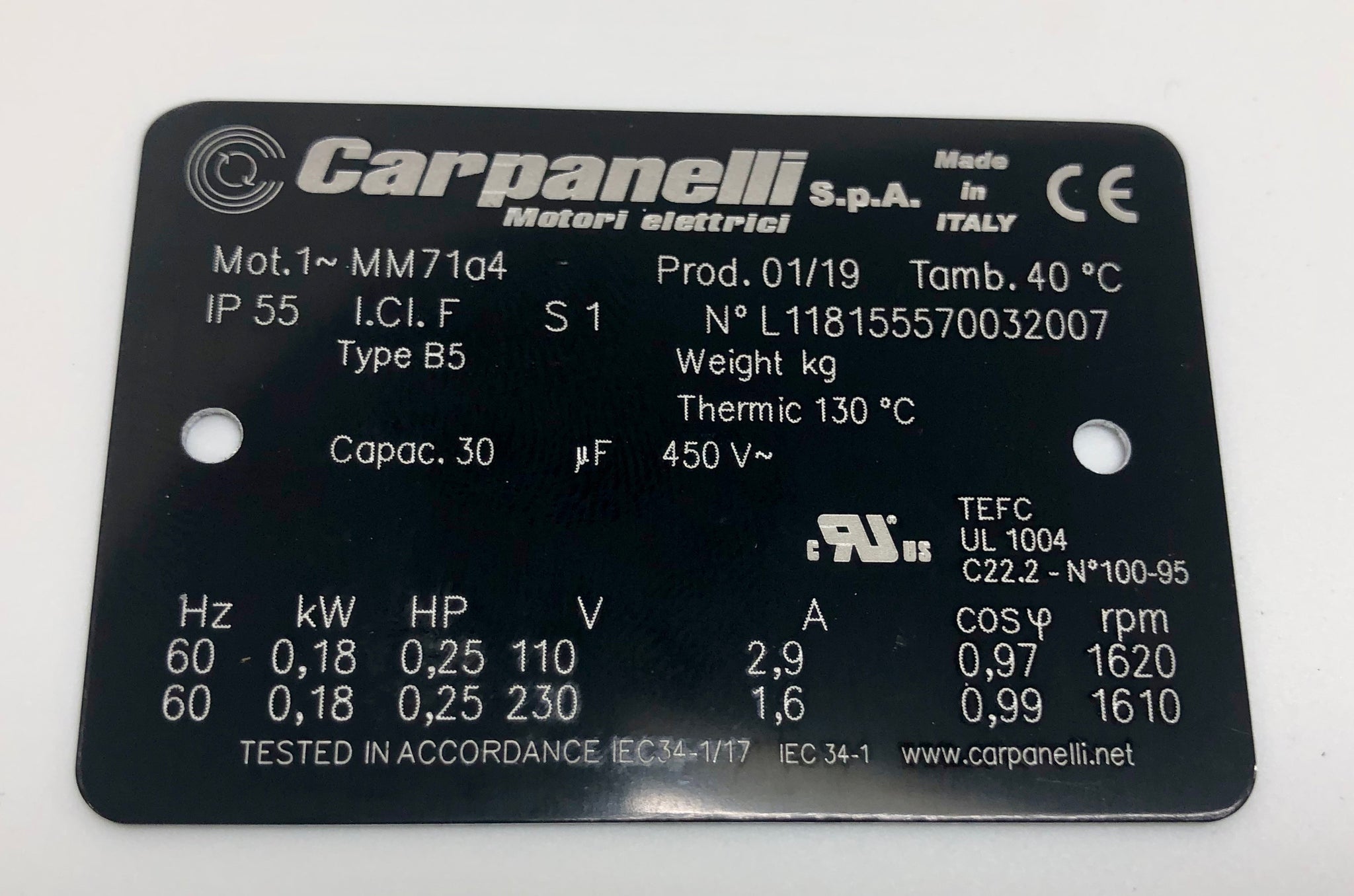

- Carpanelli 1ph AC IEC (metric) motor
- Model: MM71a4 115/230V/60Hz
- 71 frame, 0.18Kw/0.25Hp 1610rpm@60Hz 115 or 230V/60Hz.
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
-
Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- Wiring Diagram
| Kw |
Hp |
J Kgm2 |
Eff % |
Power
Factor
|
Amp@
110V
|
Amp@
230V
|
| .187 |
.25 |
.000737 |
52 |
.99
|
2.9
|
1.6
|
|
|
|
|
|
|
|
|
Nom.
Torq Nm.
|
MAX
Torq Nm
|
Max
Amp
|
RPM
|
Cap.
µF
|
Weight
Kg
|
Weight
Lbs
|
| 1.3 |
2.3 |
x2.5 |
1610 |
30 |
6.2 |
14 |
Dimensions B3
| A |
B |
C |
D |
E |
F |
G |
G1 |
H |
| 112 |
90 |
45 |
14 |
30 |
25 |
195 |
139 |
71 |
| K |
I |
L |
L1 |
L2 |
M |
N |
O |
P |
| 7 |
192 |
245 |
215 |
71 |
92 |
92 |
138 |
M4 |
| Q |
R |
U |
U1 |
V |
X |
Y |
Z |
|
| 40 |
52 |
108 |
136 |
11 |
12 |
124 |
138 |
|

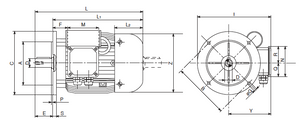

Dimensions B5 (see illustration)
| A |
B |
C |
D |
E |
F |
G |
I |
L1 |
| 110 |
130 |
160 |
14 |
30 |
25 |
10 |
204 |
215 |
| L2 |
M |
N |
P |
Q |
R |
S |
Y |
Z |
| 71 |
92 |
92 |
3.5 |
40 |
52 |
10 |
124 |
138 |
Dimensions B14 (see illustration)
| A |
B |
C |
D |
E |
F |
G |
I |
L1 |
|
70
|
85 |
105 |
14 |
30 |
25 |
M6 |
192 |
215 |
| L2 |
M |
N |
P |
Q |
R |
S |
Y |
Z |
| 71 |
90 |
90 |
2.5 |
40 |
52 |
12 |
124 |
138 |
Dimensions Shaft (see illustration)
| a |
b |
c |
d |
e |
f |
g |
h |
t |
|
14
|
30 |
M5 |
13 |
18 |
20 |
5 |
5 |
16 |
