Carpanelli MM71b2 0.56Kw/0.75Hp 2-Pole 1ph AC Metric Motor or Brakemotor

Carpanelli MM71b2 0.56Kw/0.75Hp 2-Pole 1ph AC Metric Motor or Brakemotor

$327.49 USD
$632.00 USD $327.49 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor

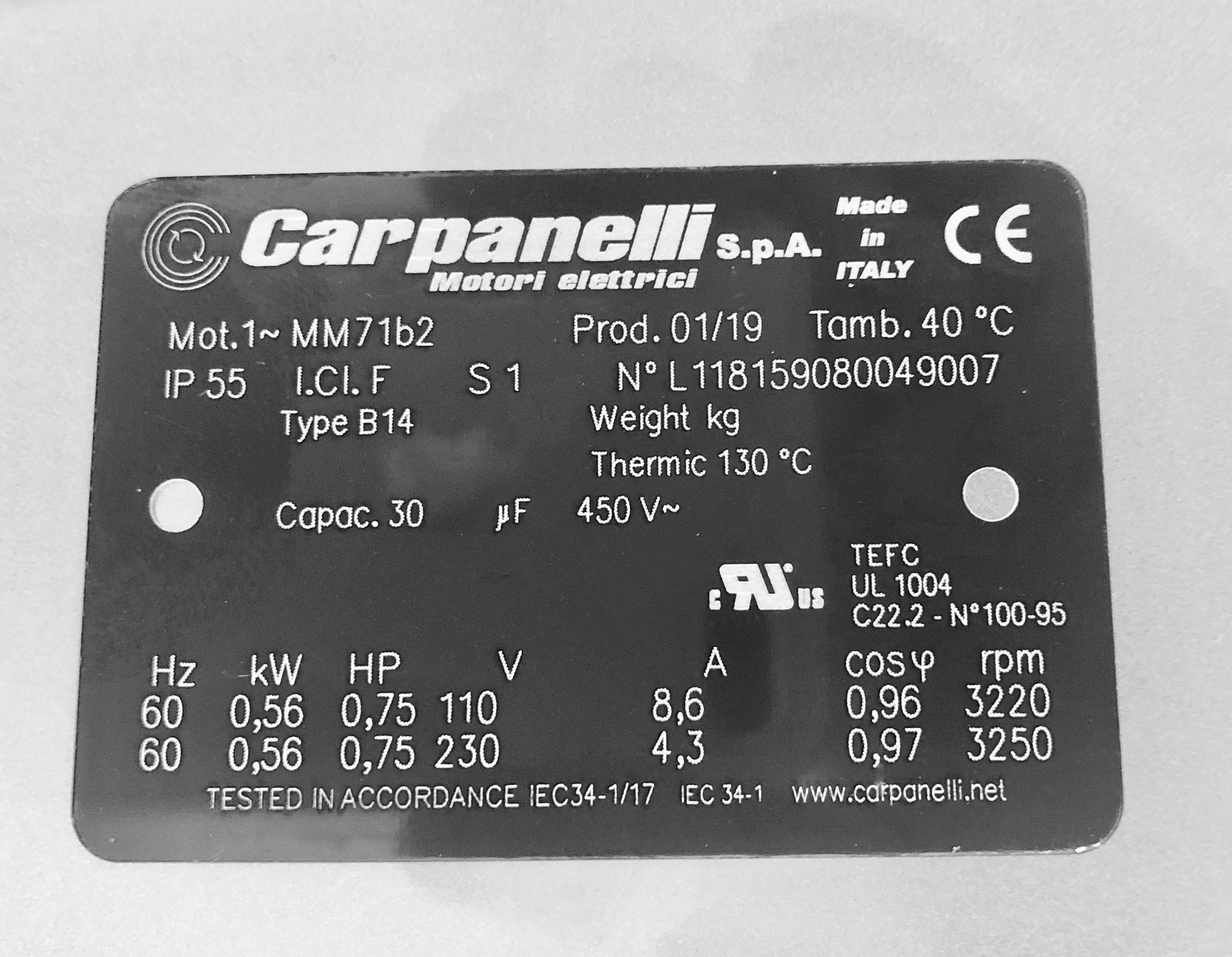

  • L118159080049007
  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM71b2 115/230V/60Hz
  • 0.56Kw 0.75Hp 2Pole 110V or 230V 60Hz 1phase
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor
  • Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • Standard shipping 2-3 days from USA Assembly Center.  <4 pieces.
  • Express production & shipment available, contact sales@tvtamerica.com
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V
.56 .75 0.000370 64

.96

8.6

4.3

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight

Kg

Weight

Lbs
1.27 3.2 x3.9 3250 30 6.5 14.5



Dimensions B3

 A B C D E F G G1 H
112 90 45 14 30 25 195 139 71
K I L L1 L2 M N O P
7 192 245 215 71 92 92 138 M4
Q R U U1 V X Y  Z
40 52 108 136 11 12 124 138

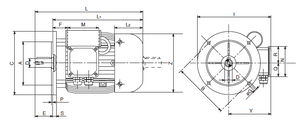

Dimensions B5 (see illustration)

 A B C D E F G I L1
110 130 160 14 30 25 10 204 215
L2 M N P Q R S Y Z
71 92 92 3.5 40 52 10 124 138



Dimensions B14 (see illustration)

 A B C D E F G I L1

70

 85 105 14 30 25 M6 192 215
L2 M N P Q R S Y Z
71 90 90 2.5 40 52 12 124 138



Dimensions Shaft (see illustration)

a b c d e f g h t

14

 30 M5 13 18 20 5 5 16
