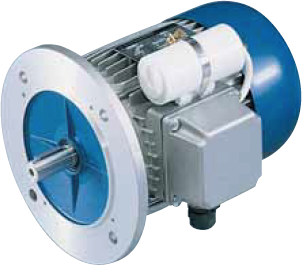

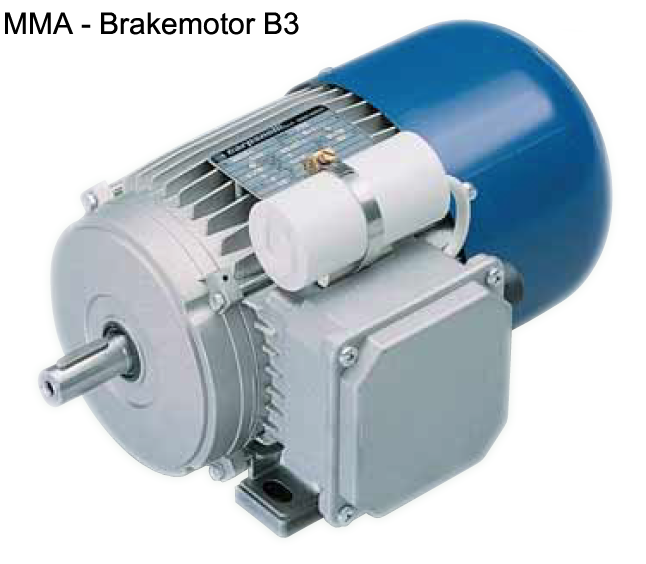

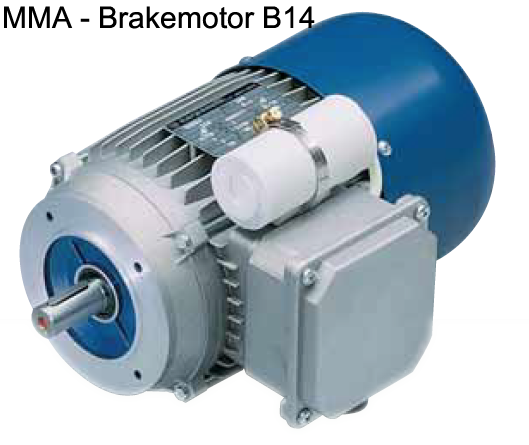

Carpanelli MM100c4 2.2Kw/3.0Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

Carpanelli MM100c4 2.2Kw/3.0Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

$540.03 USD
$1,500.00 USD $540.03 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor
  • L
  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM100c4 110/230V/60Hz
  • 2.2Kw/3.0Hp
  • 1668 rpm 110V , 1688 rpm 230V
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor

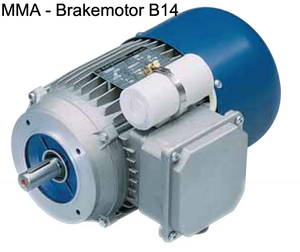

  • Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
  • Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
  • WIRING DIAGRAM
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V
2.2 3.0 .00541 75 0.94 34 17

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight*

Kg

Weight*

Lbs
15.3 30.6 x2.8 1668 60 20.0 44

 * Weight for standard motor, no brake or starting cap option.

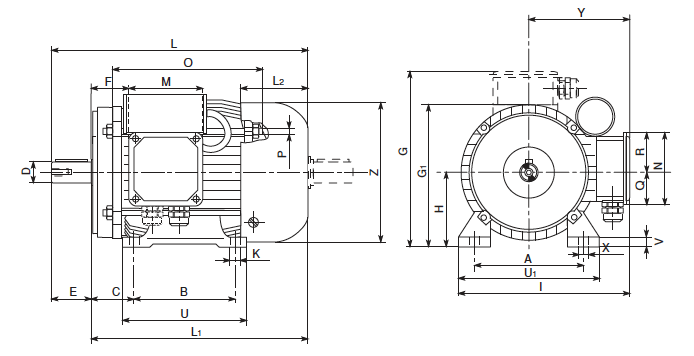

Dimensions B3

 A B C D E F G G1 H
180 215 250 28 60 40 257 196 100
K I L L1 L2 M N O P
11.2 253 365 305 95 108 110 210 M6
Q R U U1 V X Y  Z
57 57 175 192 14 21.2 157 194

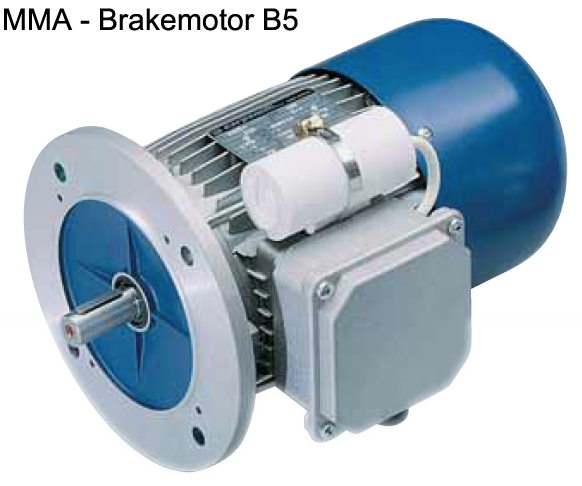

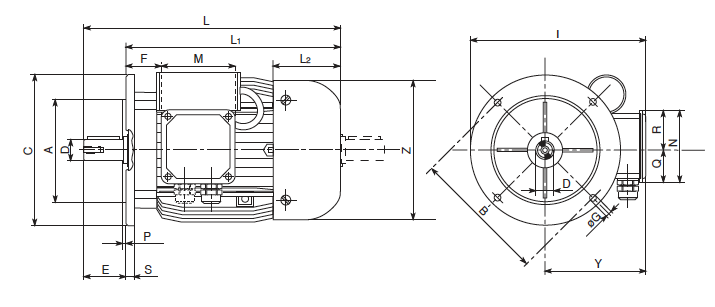

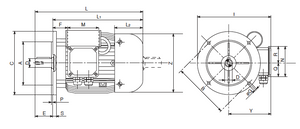

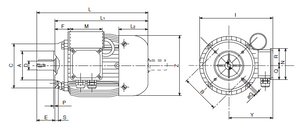

Dimensions B5 (see illustration)

 A B C D E F G I L1
180 215 250 28 60 40 14.5 282 250
L2 M N P Q R S Y Z
95 110 110 4 57 57 15 157 194

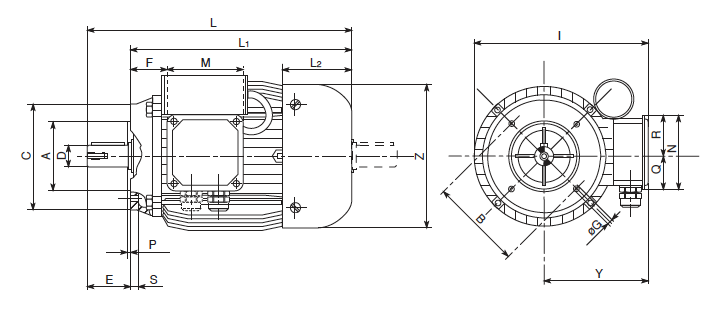

Dimensions B14 (see illustration)

 A B C D E F G I L1
110 130 160 28 60 40 M8 253 305
L2 M N P Q R S Y Z
95 110 110 3.5 57 57 16.5 157 194

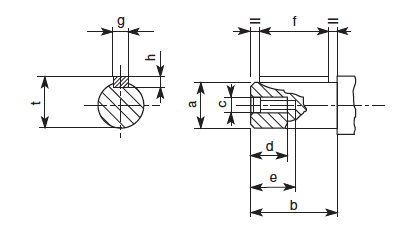

Dimensions Shaft (see illustration)

a b c d e f g h t
28 60 M10 25 35 45 8 7 31
