Part# C1.664.55.OC.1 (C1664550C1)

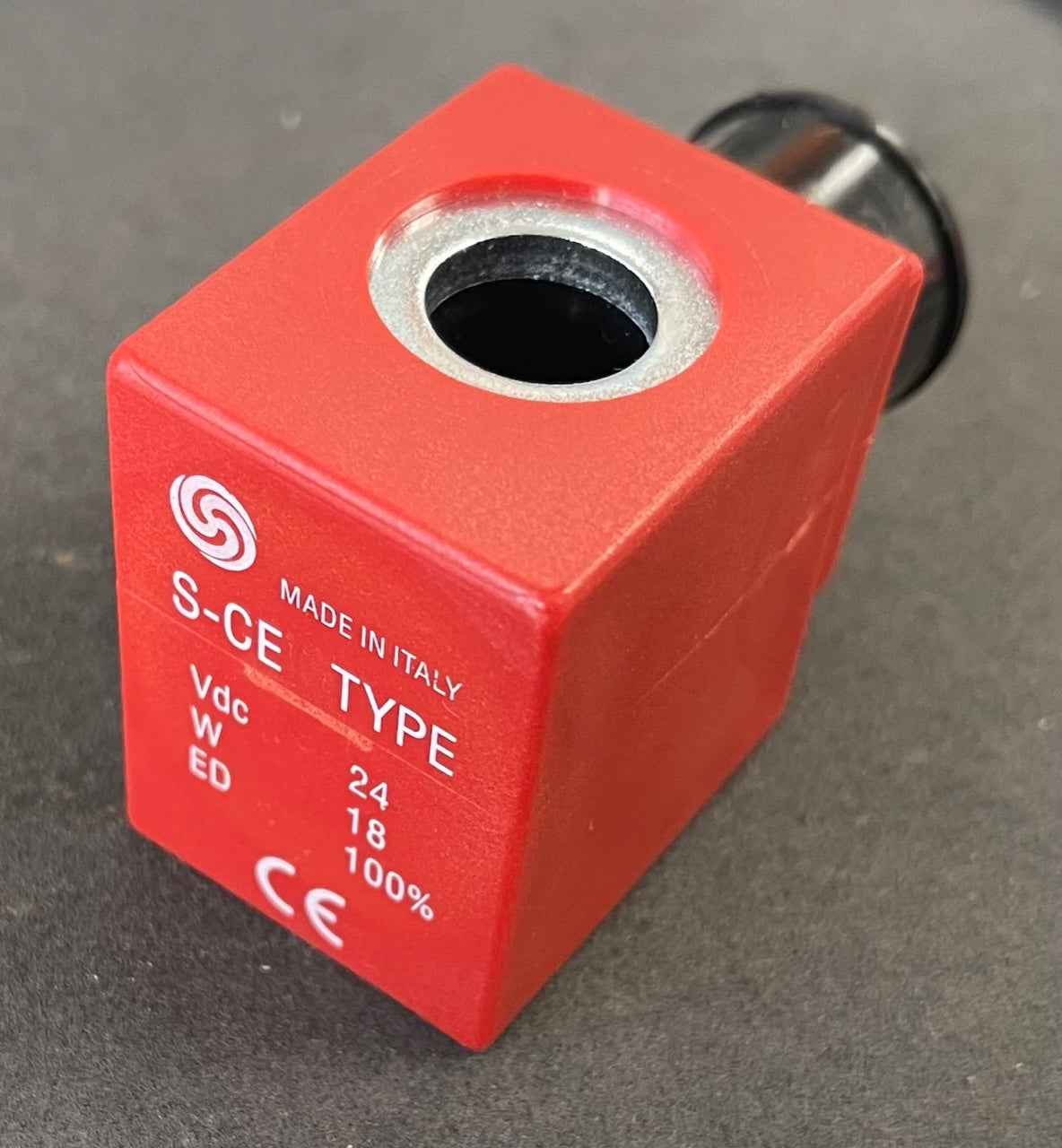

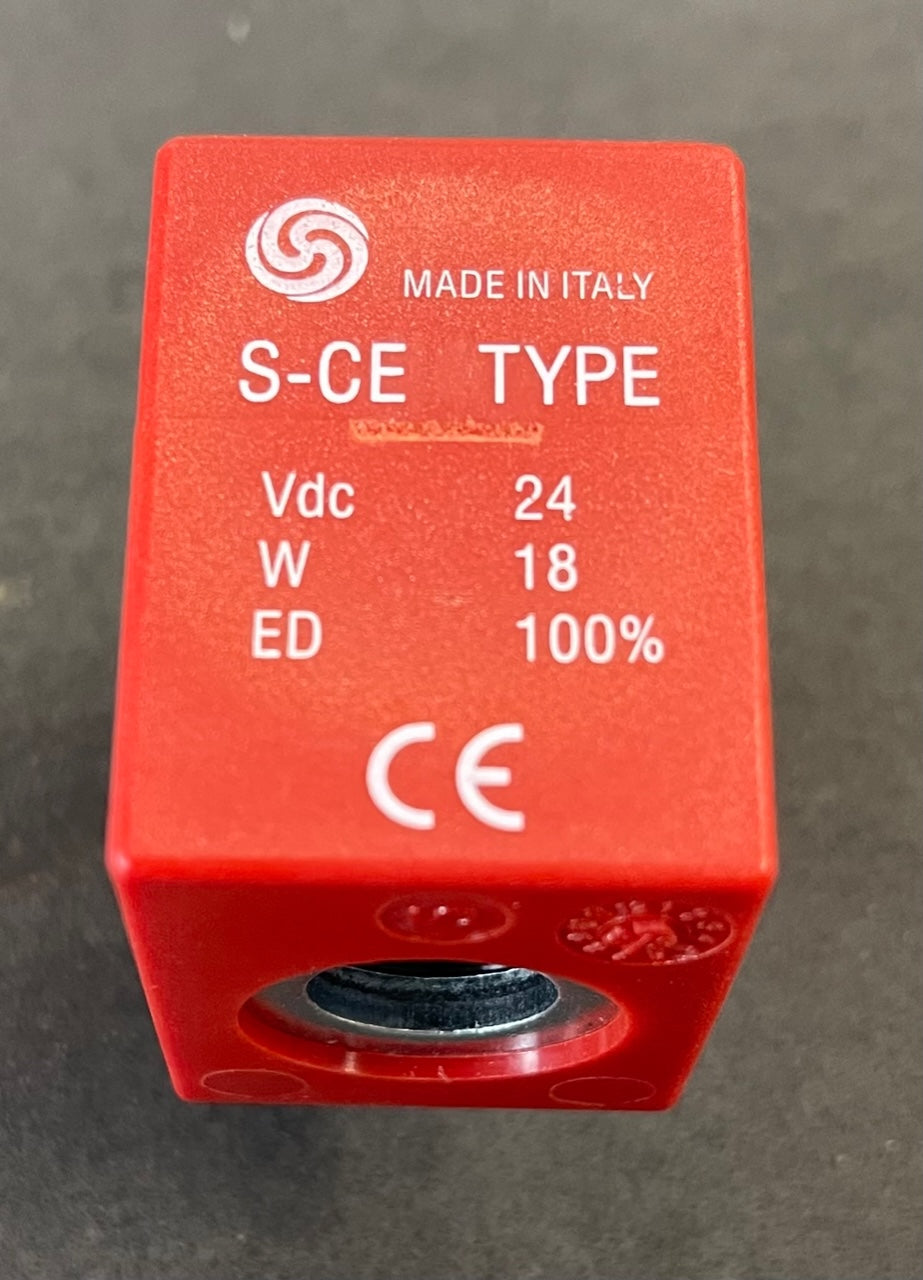

Coils with Connector type

S-CE 18watt ED10 100% (Continuous duty)

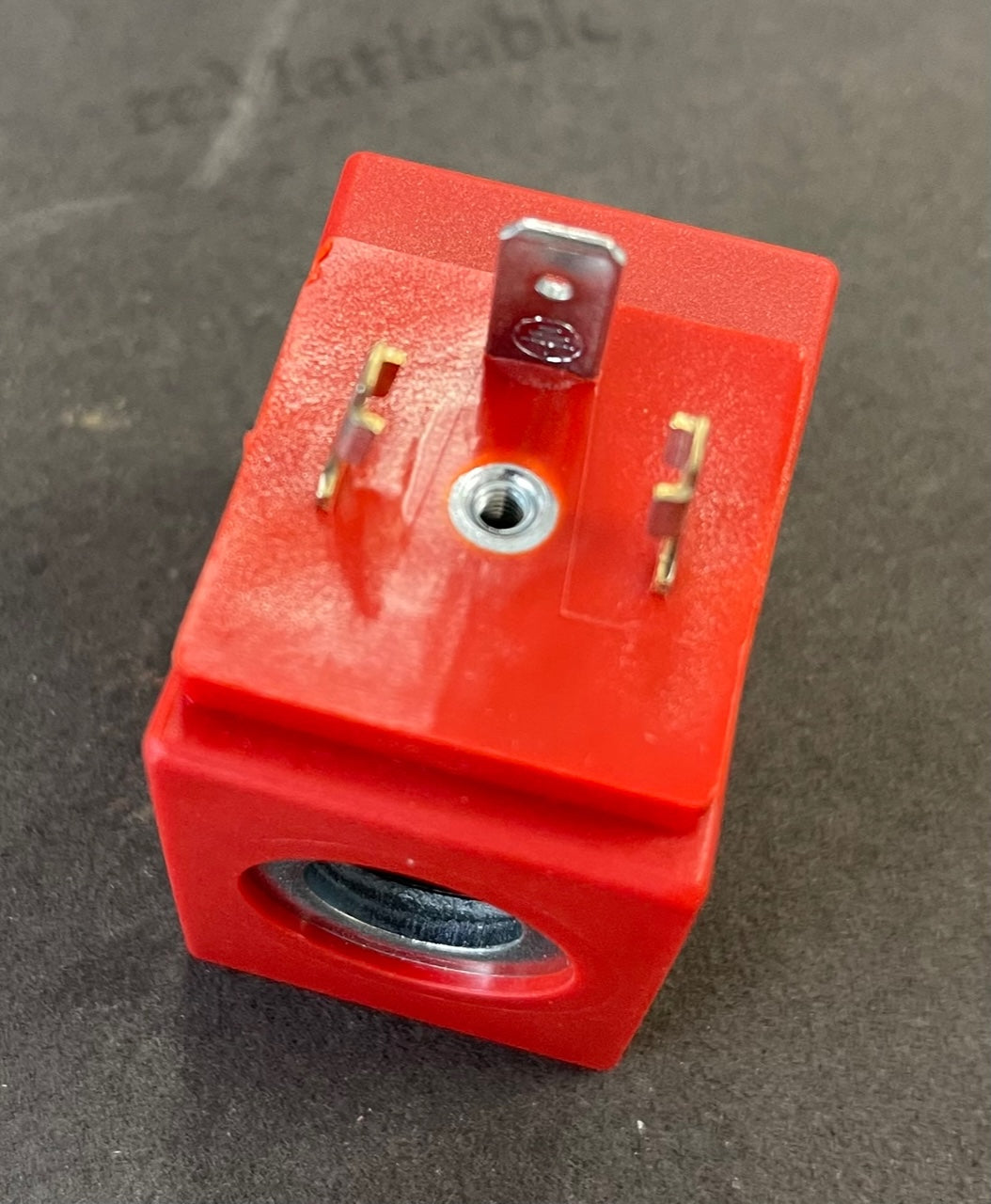

Connector type Hirschmann (DIN 43650)

Polyamide resin with fiberglass reinforcement.

Minimum Voltage 90% of nominal.

IP65, IEC 144, DIN 40050 Protection - Total protection against dust and low-pressure jets.

Insulation Class F (155ºC)

STOCK U.S.A.    Inquire for other Bosch Rexroth Hydraulic Components for a quotation.

Specification Sheet (download opens in new window).
