Carpanelli

2hp 2pole 3ph NEMA 143TC /145TC AC, Brake, & Vector Motors

2hp 2pole 3ph NEMA 143TC /145TC AC, Brake, & Vector Motors

$306.79 USD
$947.00 USD $306.79 USD
Sale Sold out
Shipping calculated at checkout.
Self Braking
Encoder

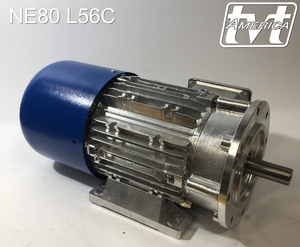

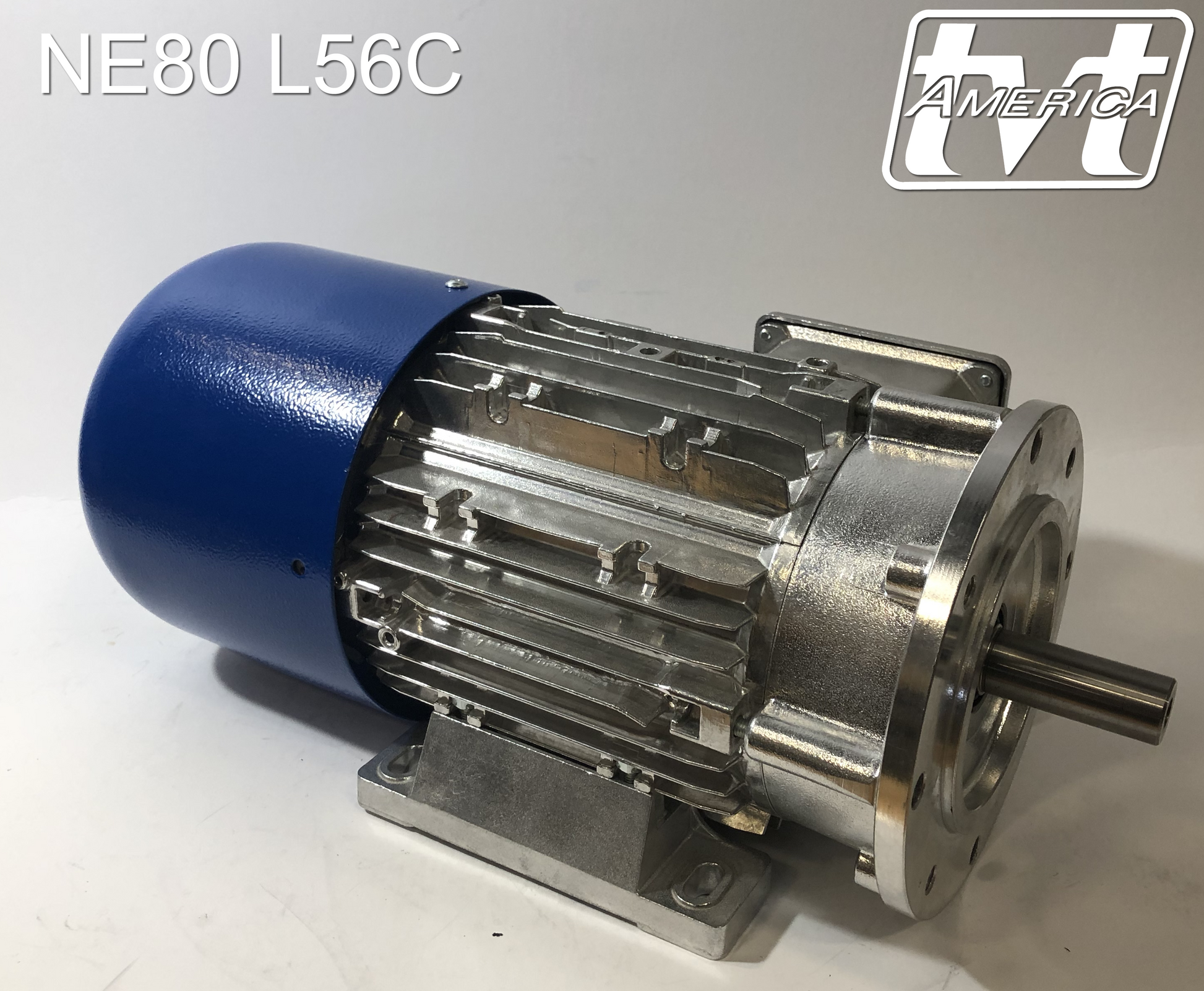

Forced Cooling

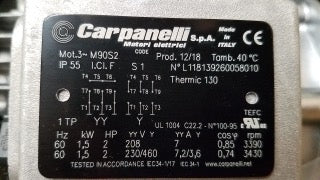

  • Carpanelli® M90s2 143TC

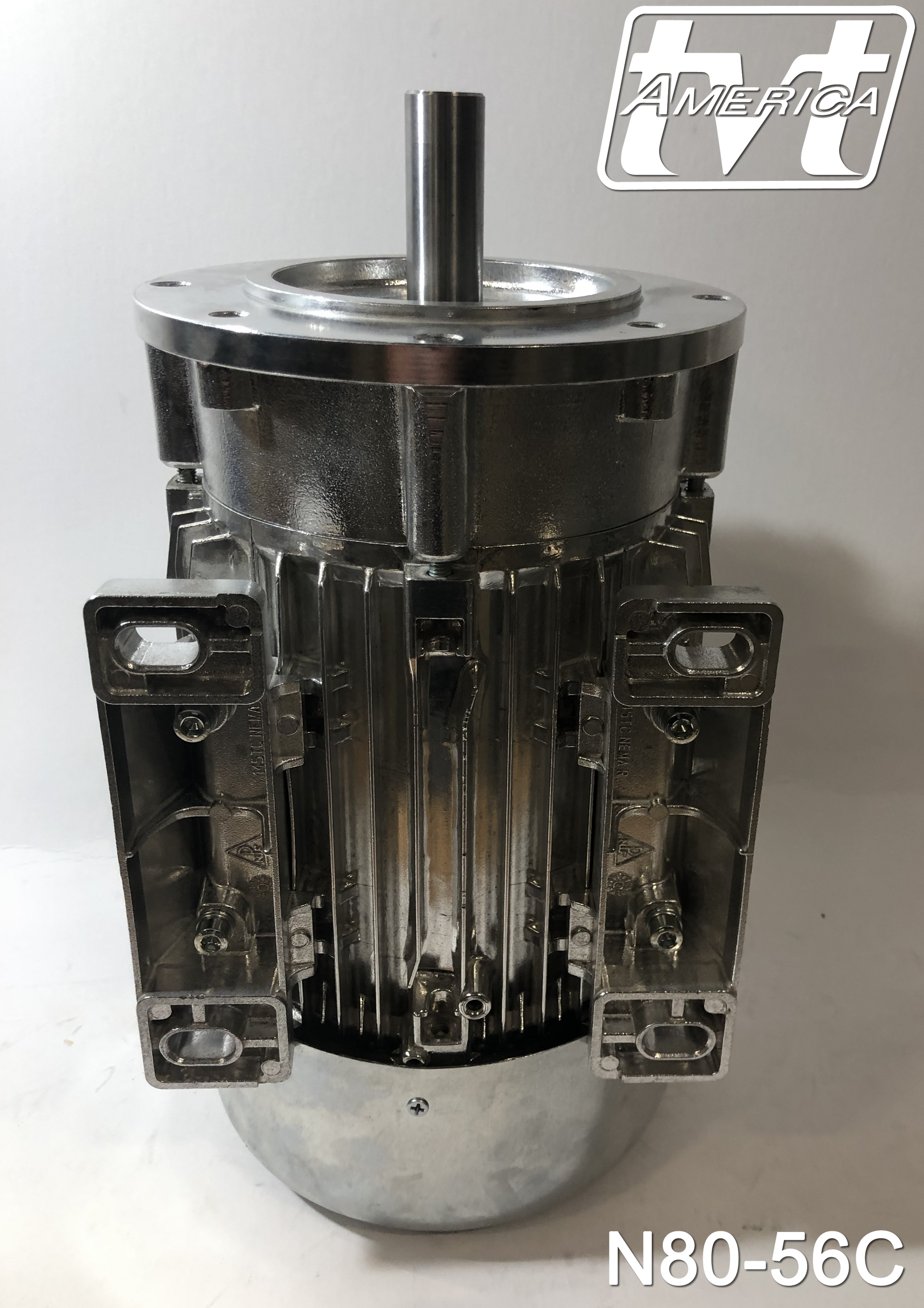

  • NEMA 143TC Flange & 3 position Movable/Removable Feet
  • 2hp/1.5Kw Output Power
  • 2-pole 3390rpm 208V/60Hz
  • 2-pole 3430rpm 230/460V/60Hz

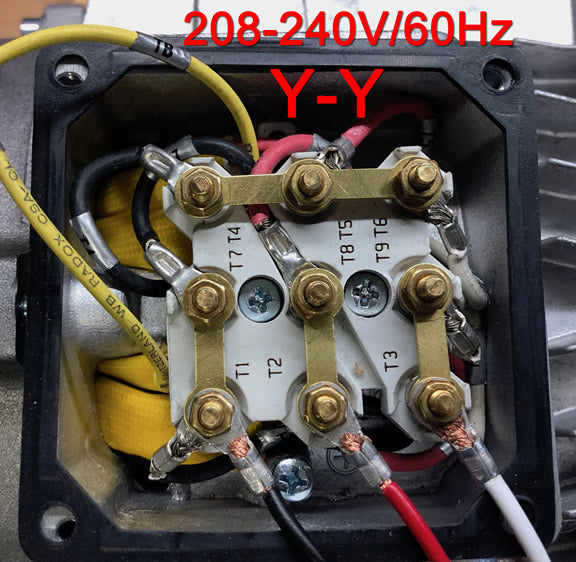

  • 208V 7A Y-Y 3 phase AC
  • 230V 7.2A Y-Y 3 phase AC
  • 460V 3.6A Y 3 Phase AC
  • Power Factor 0.85 @208V/60Hz
  • Power Factor 0.74 230/460V/60hz.
  • IP55 - Ingress Protection Rating
  • Class F Insulation System
  • 2RS Sealed ABEC 5 Electric Motor Bearings
  • Service Class S1 (1.2 Service Factor 230 & 460V/60Hz)
  • NC 130ºC Thermostat Circuit in Windings.
  • UL CSA and CE Listed & Approved
  • TEFC - Totally Enclosed Fan Cooled

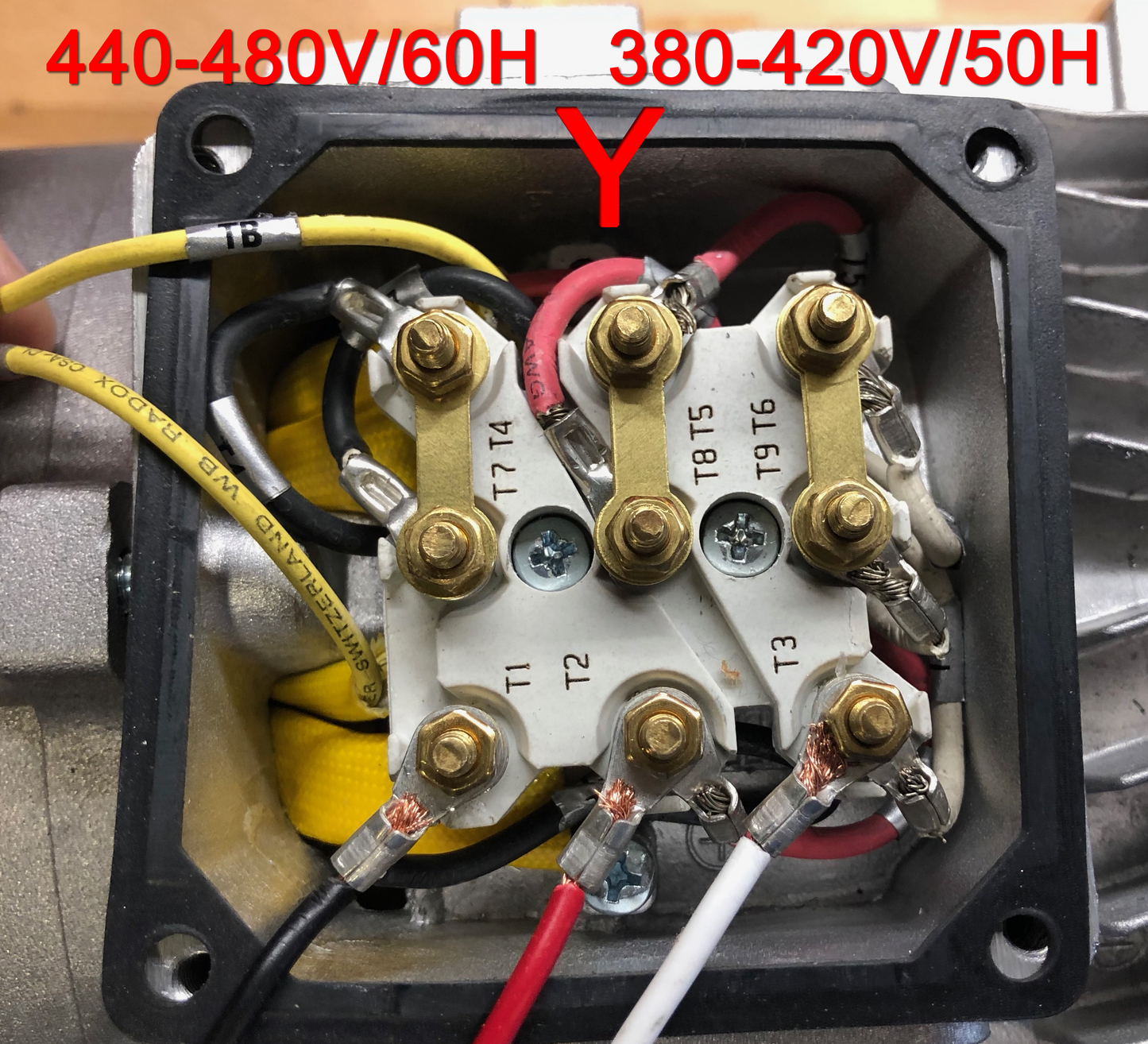

  • 9-lug terminal block for solid & clean terminations.
  • Reposition-able in 90º turns IP65 Terminal box.
  • Compact & Lightweight due to high strength die-cast aluminum alloy housing.
  • OPTIONAL - Self Braking, Programable Encoder, Force Ventilation Systems. Configure/Price/Order On-line.
  • Superior cooling to Iron or Inexpensive wrapped steel motors.
  • Made in USA from 100% Designed & Manufactured from Italian Components.
  • Standard Shipping 1-3 days ARO ≤5 pieces (5> inquire).
  • Expedited Production & Shipping Available (SAME DAY) inquire to sales@tvtamerica.com
