NERIMOTORI® 1ph AC IEC Metric Motor

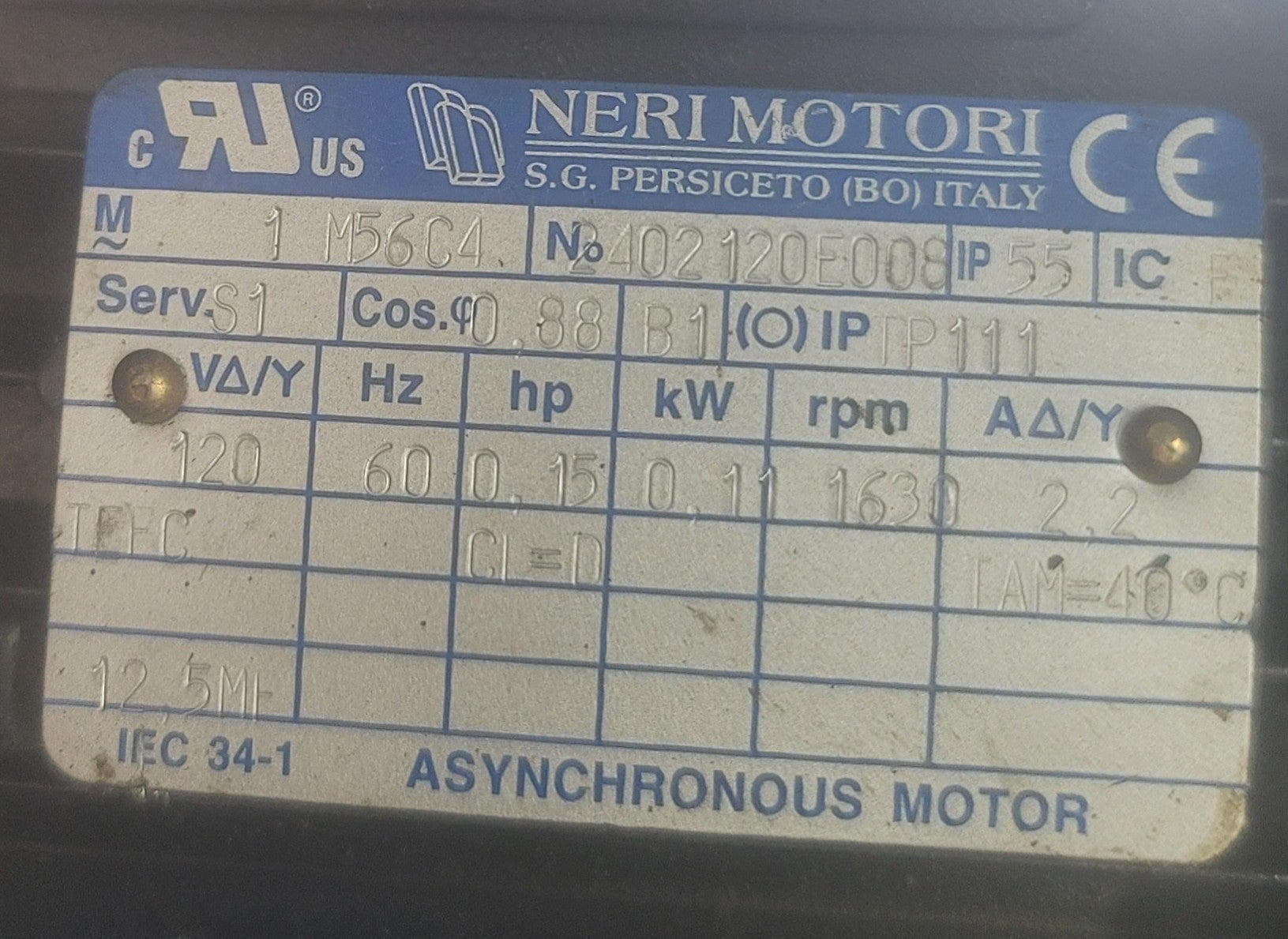

Series M, Size 56B, 4 pole, 0.11Kw 120V/60Hz, Ingress Protection 55, Class F insulation, 3 Thermal Protections (TP111) UL/CSA/CE Listed, S1 service.  Typo: 1 M56C4

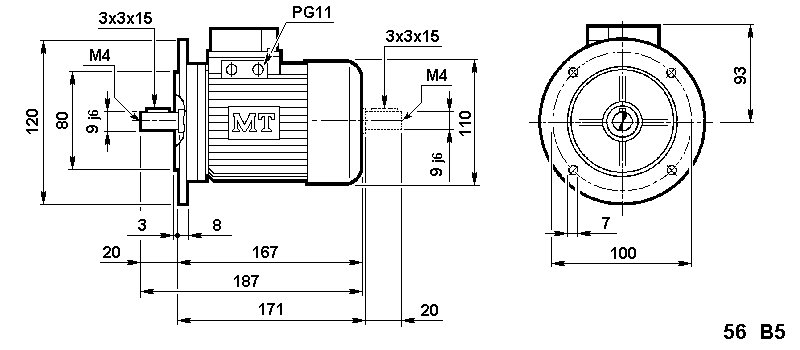

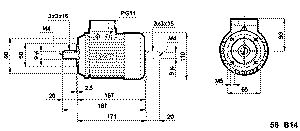

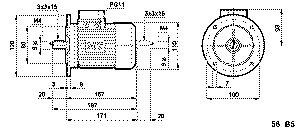

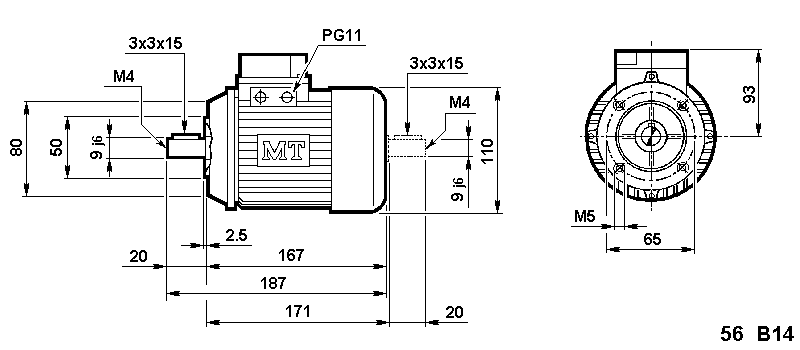

Select mounting form when ordering  B14 compact flange, B5 standard flange.

To select & download Cad Files for this motor, Click Here and new window will open.

Click Here to open the specification page in a new window for the Nerimotori® M series.
