Motori Elettrici MT® 3ph AC IEC Metric Motor

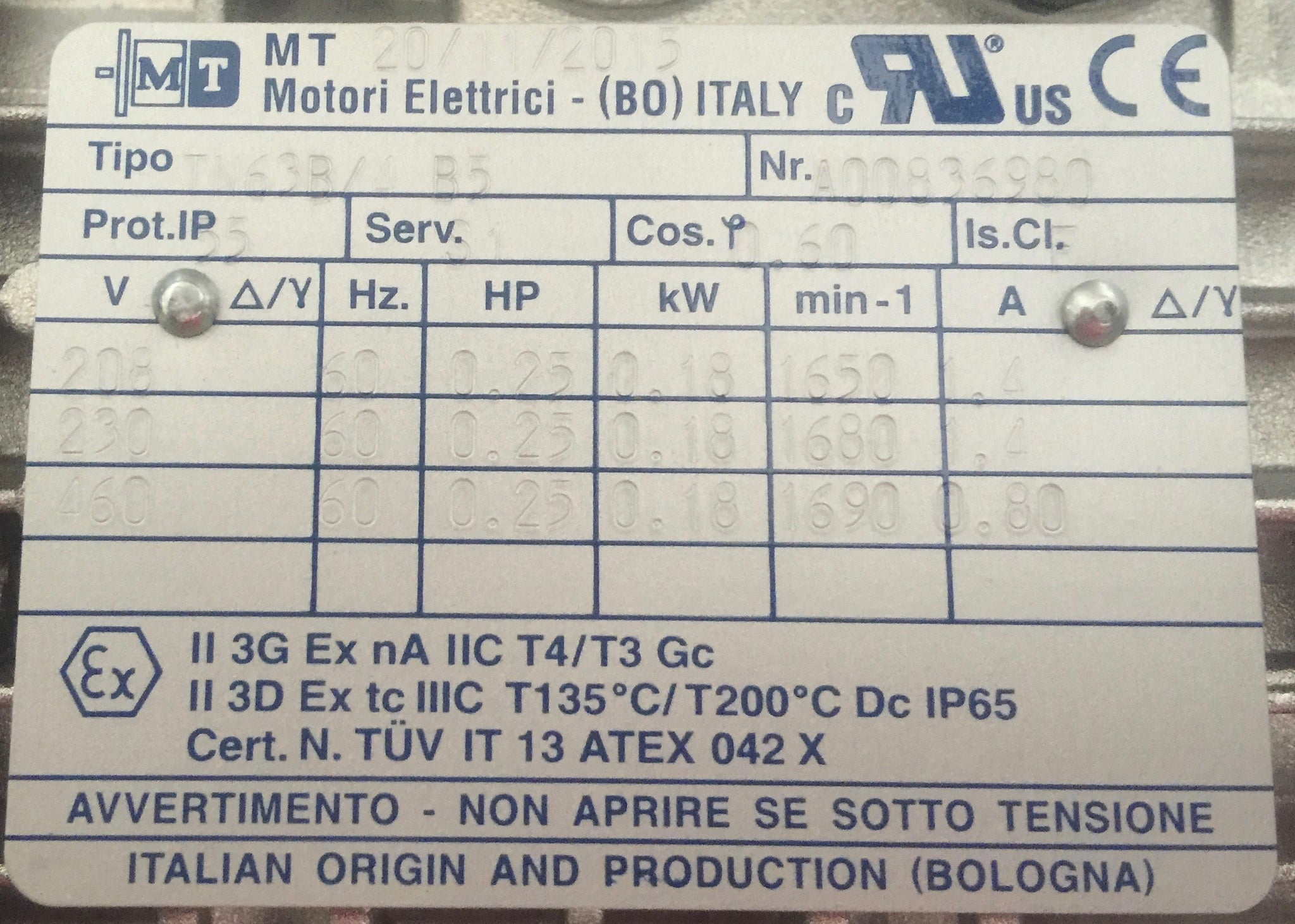

Series TN, Size 63B, 4 pole, 0.18Kw 200YY/400Y V/50hz, 230YY/460V Y/60Hz (9 leads) Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN63B/4 NA

For the EU standard 230∆/400Y-50Hz 265∆/460Y-60Hz version of this motor with 6 leads in terminal box of same motor visit TN63B4 EU page.

To select & download Cad Files for this motor, (click here) new window will open.

Click Here for a .pdf spec sheet for this motor to open in a new window.
