Berges® R300b Control Pulley

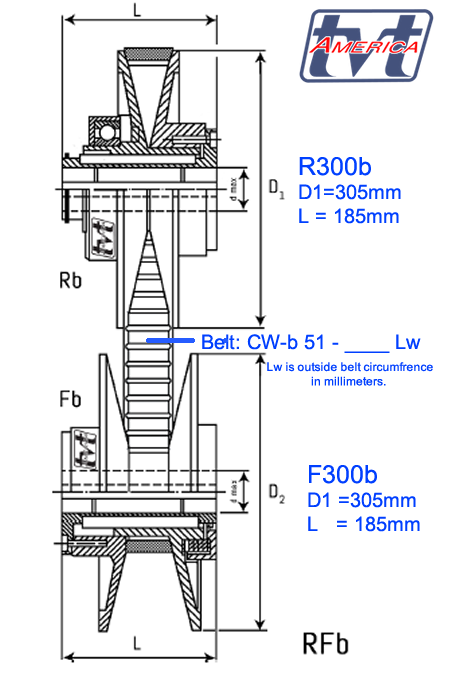

Berges® Control Pulley type R300b for use with wide belts type CW-b 51 and spring tensioning pulley F300b.  Diameter of 305mm with length trough the bore 185mm.  Die-cast aluminum pulley faces with steel slide hub with thrust bearing on one side.  Casting numbers ; castings maybe used on other series of pulleys.    Maximum shaft diameter 48mm with standard bores listed for sale, alternative bores are available Contact TVT for non-standard bore quotation.

Items may not be in stock. Non-Stock lead time is 6-8 weeks.
